Livolo Touch 2-Way Dimmer Switch Module – 1 Gang, New Series (C7-VL-FC1SD1-2G)

Livolo Single Touch 2-Way Dimmer Switch Module

A simple design with an outstanding mechanism. This single-gang touch switch module works as a two-way (staircase) switch with dimmer function and is compatible with Livolo glass panels in a range of colours.

• Single-gang touch module
• Two-way (staircase) switching
• Built-in dimmer
• Important: the Livolo glass panel is NOT included in the price and must be purchased separately

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

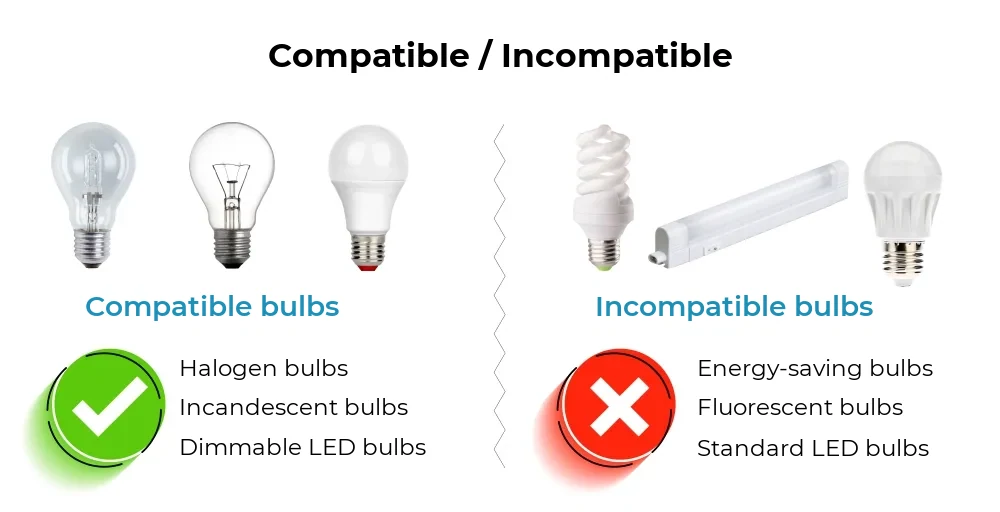

Compatible and Incompatible Lamps

• Compatible: halogen lamps
• Compatible: incandescent lamps
• Compatible: dimmable LED lamps
• Incompatible: energy-saving lamps
• Incompatible: fluorescent lamps
• Incompatible: standard (non-dimmable) LED lamps

Wiring Diagram

For two-way operation, two modules are connected together. The live (L) wire connects to the L terminal of the first module, the COM terminals of both modules are linked, and the L1 output of the second module feeds the lamp, which is connected to neutral (N).

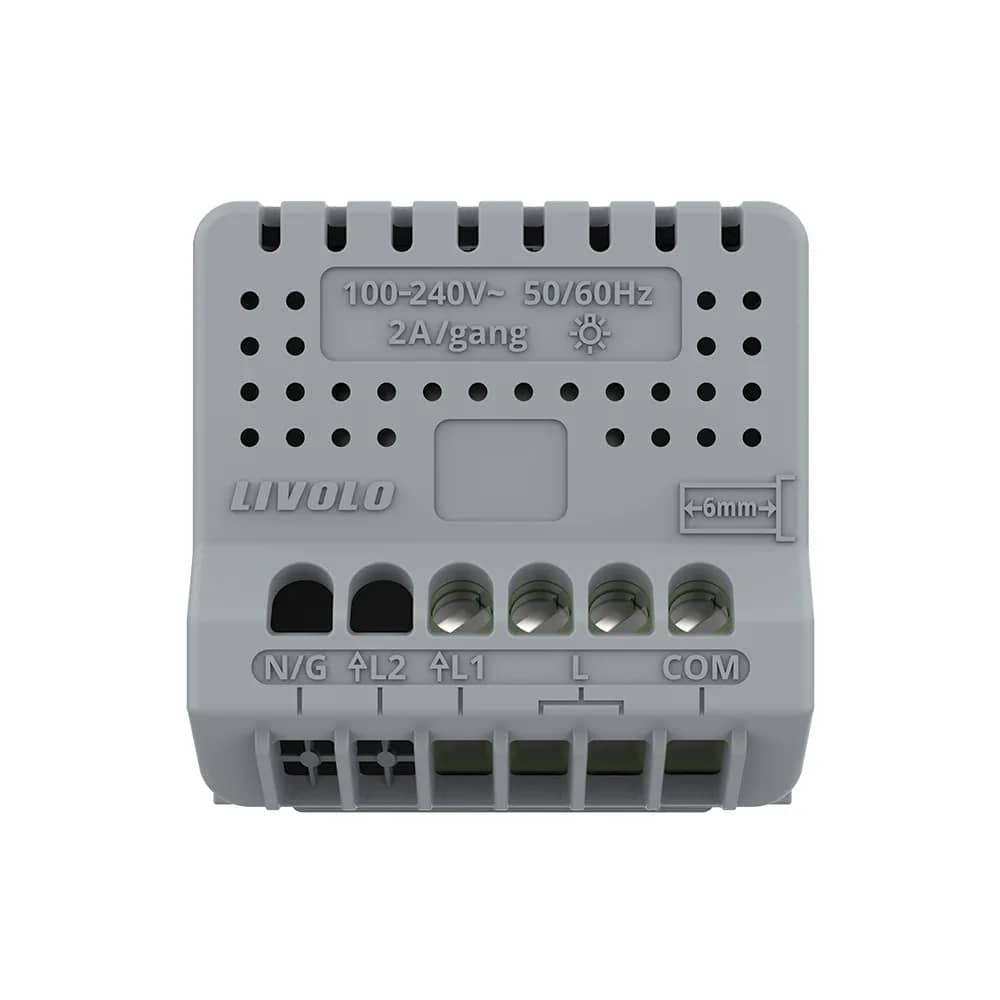

• Terminals: N/G, L2, L1, L, COM
• Rated: 100-240V~ 50/60Hz, 2A/gang

Structure

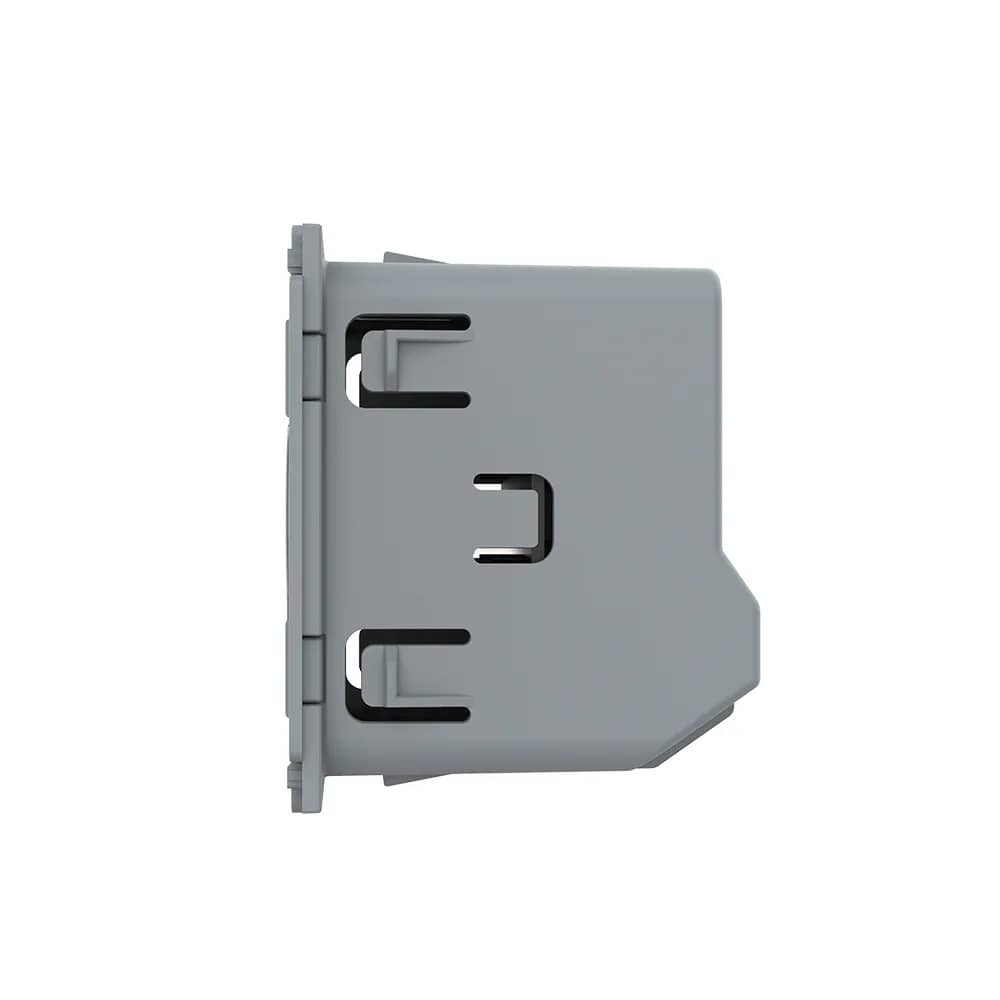

The complete switch consists of an elegant crystal glass panel, the switch module and a metal frame. Only the switch module is supplied.

• Elegant crystal glass panel (not included)
• Switch module (included)
• Metal frame (not included)

Dimensions

• Panel size: 80 mm x 80 mm
• Screw fixing distance: 60 mm
• Panel thickness: 4 mm
• Module depth: 33 mm
• Frame depth: 8 mm
