Livolo

Livolo Single Socket with Blank Module and Tempered Glass Frame – 3M, Italian Standard, New Series

SKU: VL-C9-C1EU-11

AED 43

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

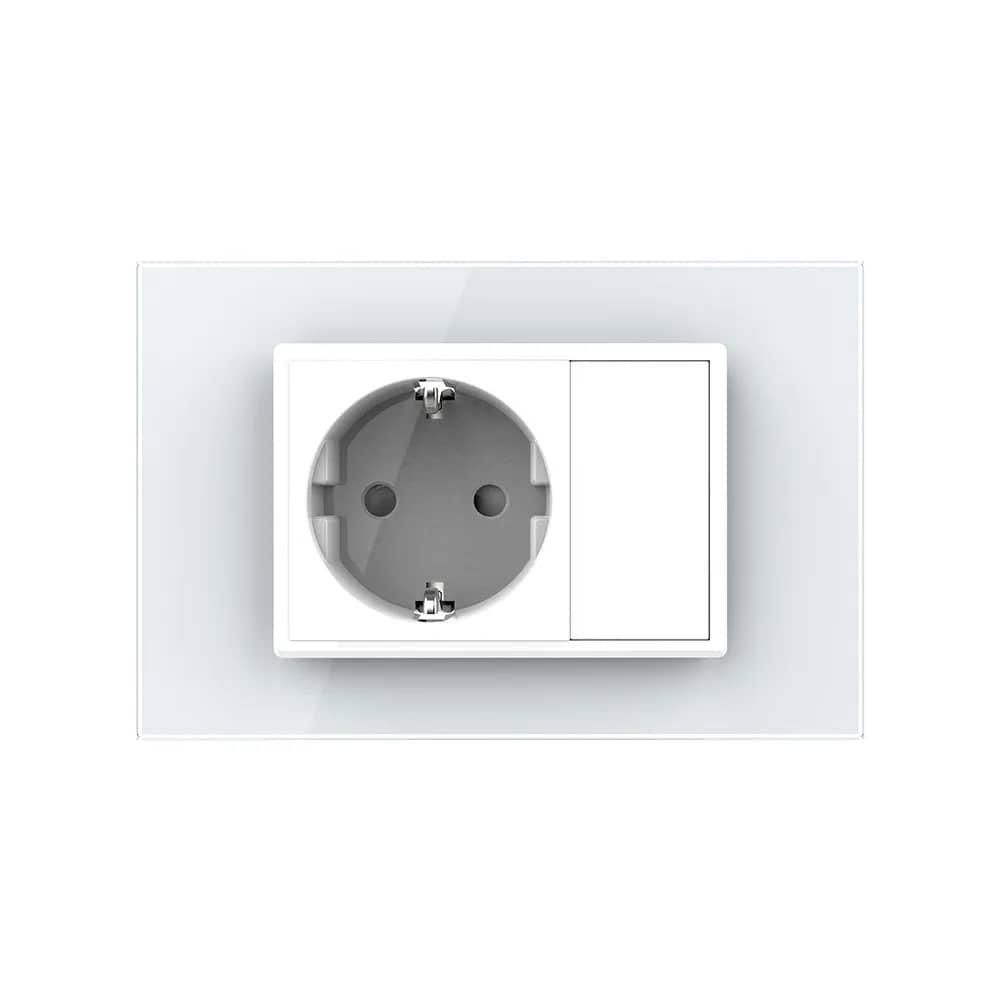

Livolo single socket with blank module and glass frame, Italian standard, for 3-module boxes with 85 mm screw spacing.

Product details

Livolo single socket with glass frame, Italian-style model for homes, offices, commercial spaces and hotels. Modern, high-quality products. This product is compatible with 3-module modular wall boxes with 85 mm spacing between screws.

Highlights

Livolo Single Socket with Blank Module and Tempered Glass Frame – 3M, Italian Standard, New Series – Livolo Single Socket with Blank Module
01

Livolo Single Socket with Blank Module

A range of products with a simple design and an outstanding mechanism. This single socket with blank module comes with a 3M glass frame to the Italian standard and belongs to the new Livolo C9 socket series.

  • Single socket with blank module
  • 3M glass frame, Italian standard
  • New Livo C9 series
Livolo Single Socket with Blank Module and Tempered Glass Frame – 3M, Italian Standard, New Series – Durable Glass Panel
02

Durable Glass Panel

The panel is made from high-quality glass that resists scratches and high temperatures. It does not fade, so its elegant design stays intact.

  • Scratch-resistant glass
  • Resistant to high temperatures
  • Does not discolour
Livolo Single Socket with Blank Module and Tempered Glass Frame – 3M, Italian Standard, New Series – Structure
03

Structure

The socket is built from three main parts.

  • Elegant crystal panel (glass panel)
  • Socket module
  • Metal frame
  • Screw fixing system
Livolo Single Socket with Blank Module and Tempered Glass Frame – 3M, Italian Standard, New Series – Dimensions
04

Dimensions

  • Width: 119 mm
  • Height: 78 mm
  • Screw fixing spacing: 85 mm
  • Depth details: 4 mm, 8 mm, 30 mm
Livolo Single Socket with Blank Module and Tempered Glass Frame – 3M, Italian Standard, New Series – Wiring Diagram
05

Wiring Diagram

Connect the three wires to the marked terminals of the socket module. The module is marked 16A 250V~.

  • Neutral line
  • Live (supply) line
  • Earth line
Livolo Single Socket with Blank Module and Tempered Glass Frame – 3M, Italian Standard, New Series – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Click the front panel into place.
