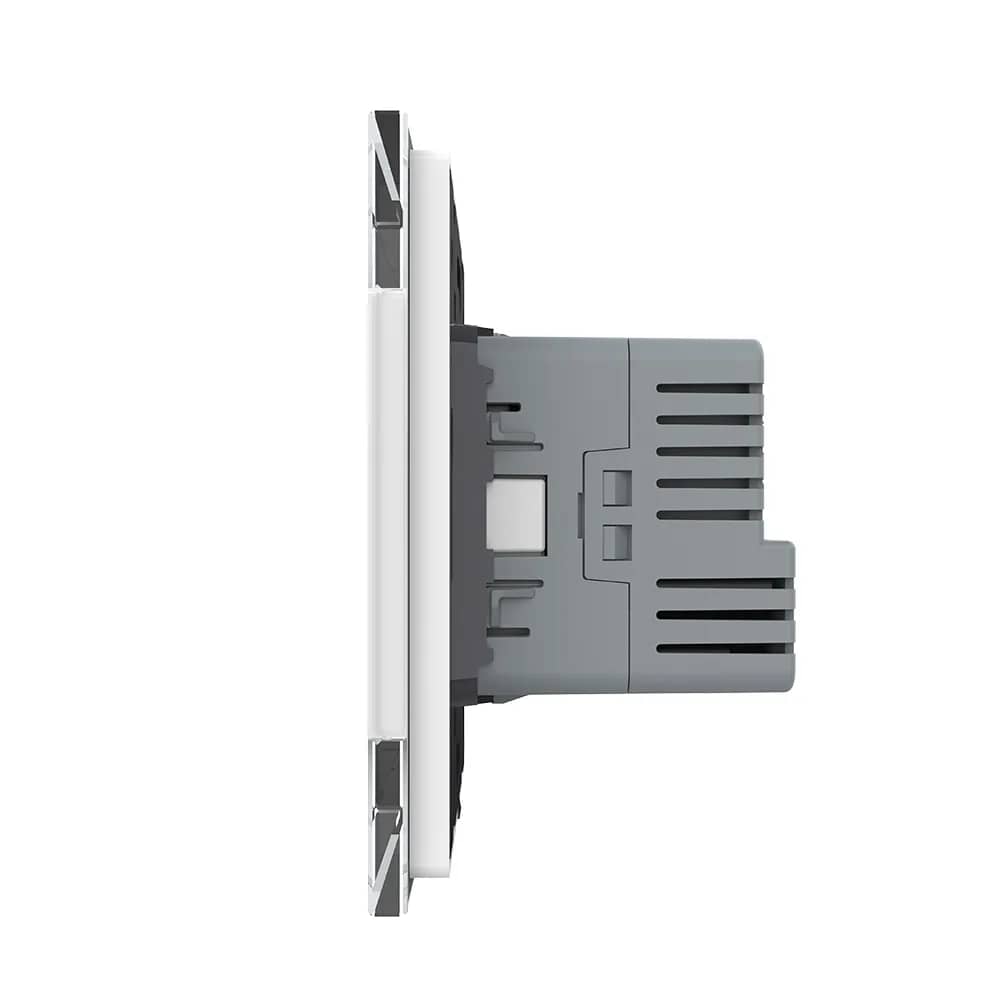

Livolo Schuko Socket with USB-C – German Standard, New Series – White — image 4
1/4
Livolo

Livolo Schuko Socket with USB-C – German Standard, New Series

SKU: VL-FCTF16A.UC18W-2WP

AED 114

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo German-standard Schuko socket with USB-C port and tempered glass frame, available in White, Gold, Grey and Black.

Plug type: this socket is the European Schuko type (CEE 7/3). Most UAE homes use BS 1363 (Type G) sockets — please check that it suits your installation and appliances, or ask us before ordering.

Product details

Livolo Schuko + USB-C socket, German standard, with a glass frame. The product is ideal for homes, offices, commercial spaces and hotels. It fits a wall box with 60 mm screw spacing.

Highlights

Livolo Schuko Socket with USB-C – German Standard, New Series – Livolo Schuko + USB-C Socket – German Standard
01

Livolo Schuko + USB-C Socket – German Standard

A range of products with a simple design and an outstanding mechanism. This Livolo socket combines a German-standard Schuko outlet with a USB-C port.

  • Schuko socket with integrated USB-C port
  • German standard
  • Available in several frame colours

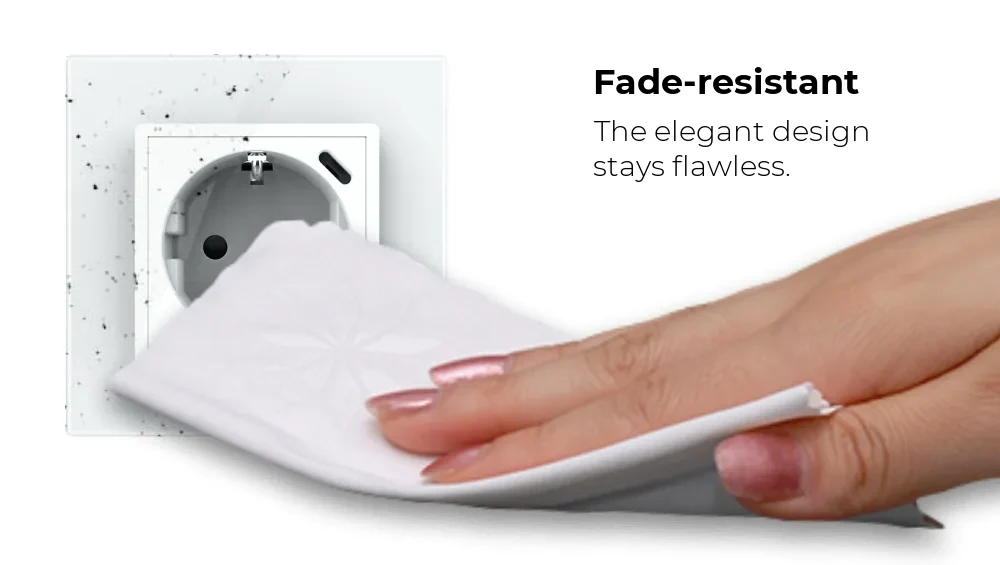

Livolo Schuko Socket with USB-C – German Standard, New Series – Does Not Discolour
02

Does Not Discolour

The elegant design stays intact and is easy to wipe clean.

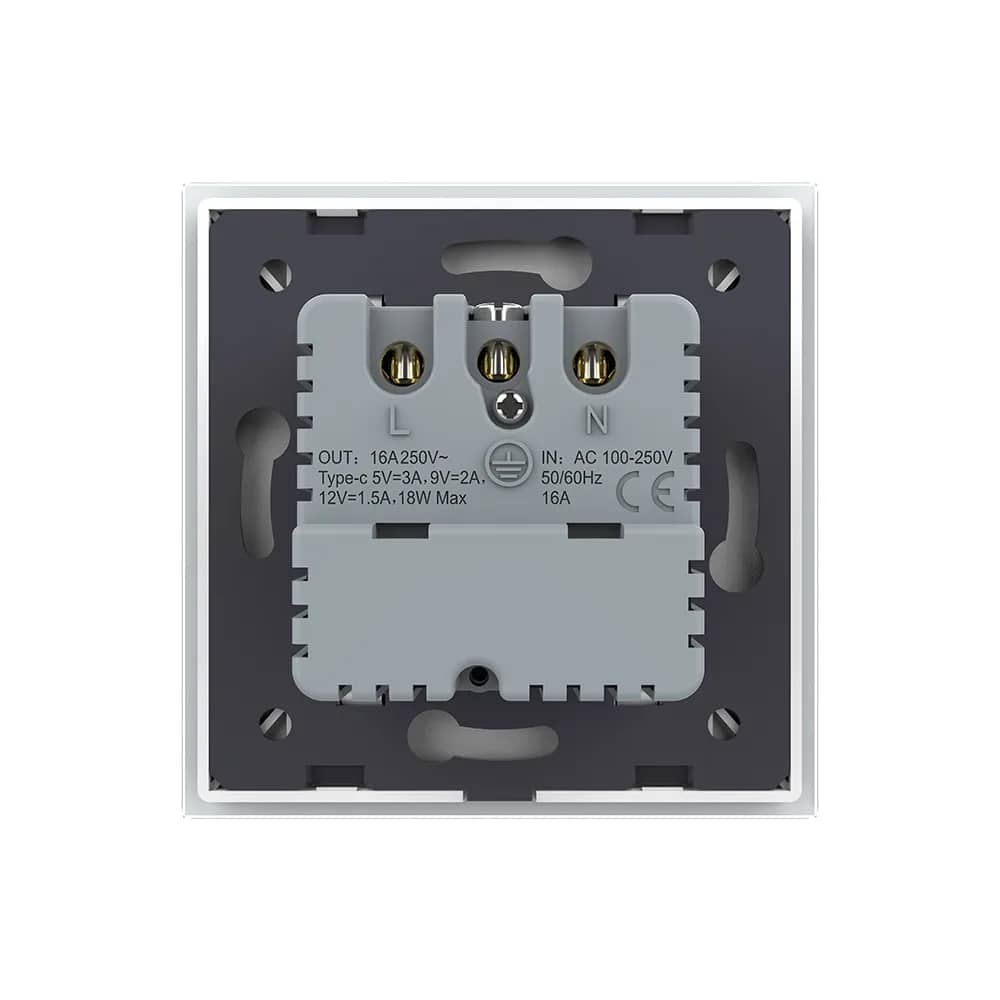

Livolo Schuko Socket with USB-C – German Standard, New Series – Installation – Wiring Diagram
03

Installation – Wiring Diagram

Connect the wires to the terminals on the back of the module as shown below.

  • Neutral (N): N terminal
  • Earth cable: earth terminal (centre)
  • Live (L): L terminal
Livolo Schuko Socket with USB-C – German Standard, New Series – Structure
04

Structure

The socket is made up of three components.

  • Glass frame
  • Socket module
  • Metal frame
  • Screw-fixing system with 60 mm spacing
Livolo Schuko Socket with USB-C – German Standard, New Series – Technical Data
05

Technical Data

  • Input: AC 100-250V, 50/60Hz, 16A
  • Socket output: 16A 250V~
  • USB-C output: 5V⎓3A, 9V⎓2A, 12V⎓1.5A, 18W Max
  • Frame dimensions: 80 mm x 80 mm
  • Socket insert width: 45 mm
  • Module depth: 36 mm
  • Module height: 40 mm
  • Frame thickness: 4 mm / 8 mm
  • Fixing screw spacing: 60 mm

In detail

Livolo Schuko Socket with USB-C – German Standard, New Series – detail 1
