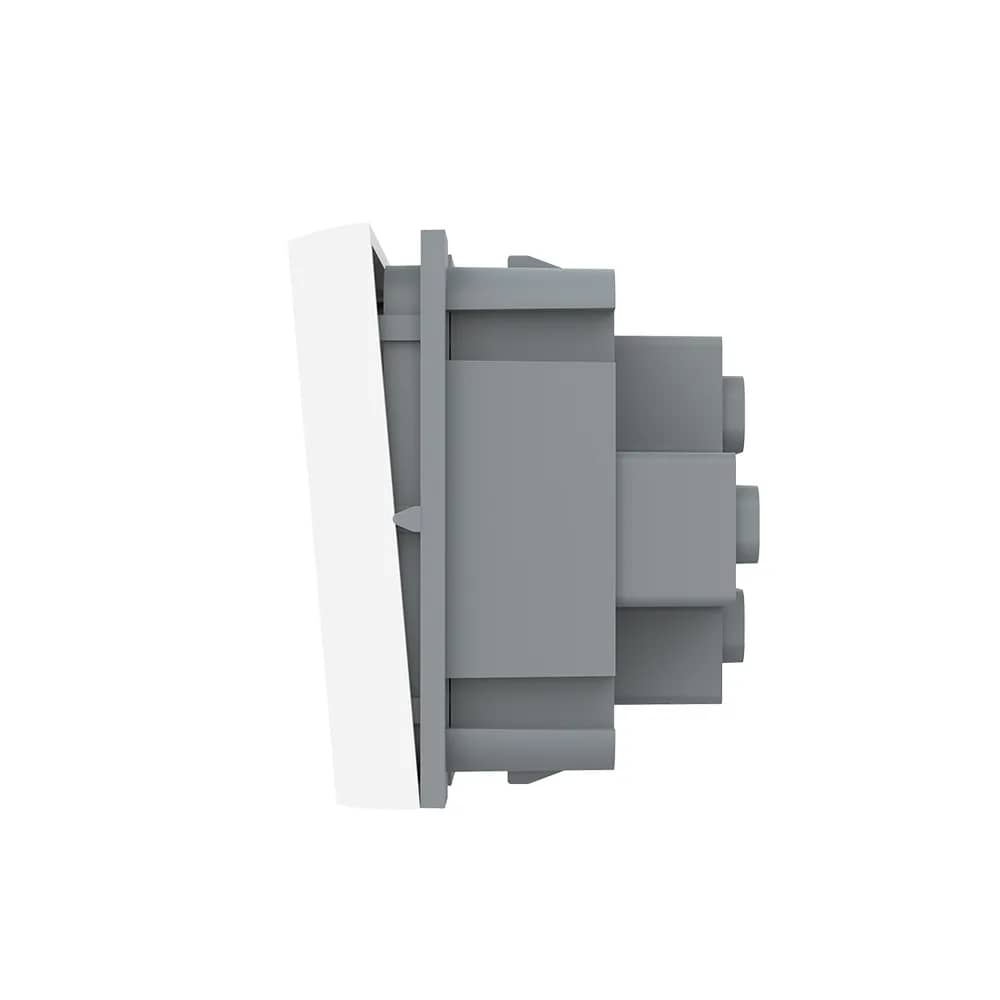

Livolo Mechanical 1 Gang Push Button Switch Module with Reset (Momentary), 2 Modules – New Series – White — image 3

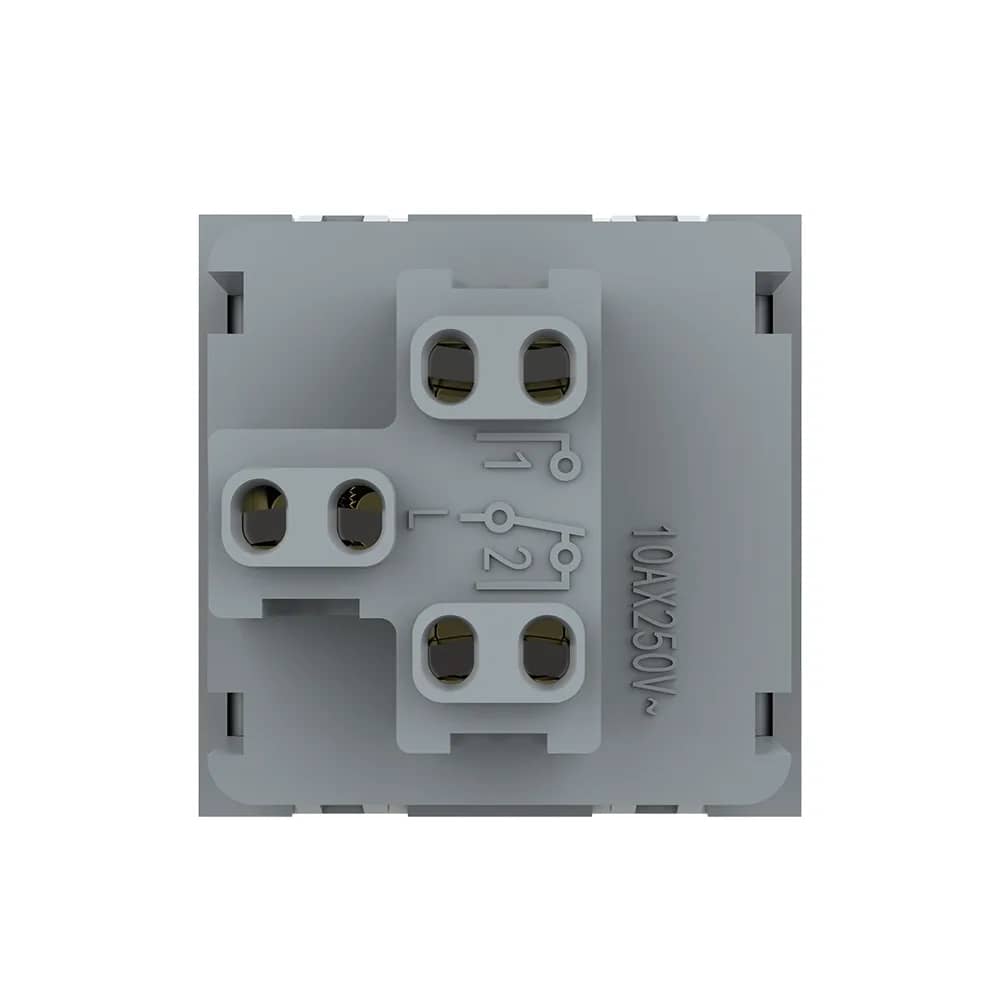

Livolo Mechanical 1 Gang Push Button Switch Module with Reset (Momentary), 2 Modules – New Series – White — image 4
1/4
Livolo

Livolo Mechanical 1 Gang Push Button Switch Module with Reset (Momentary), 2 Modules – New Series

SKU: C7-VL-FCMH-2WP

AED 16

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo mechanical 1 gang switch module with reset (momentary) action, 2-module size, for Livolo glass frames on German or Italian modular boxes.

Product details

Livolo mechanical 1 gang switch module with reset (momentary return), 2 modules. The product is compatible with glass frames for standard German back boxes or Italian modular back boxes.

Highlights

Livolo Mechanical 1 Gang Push Button Switch Module with Reset (Momentary), 2 Modules – New Series – Livolo Single Mechanical Switch Module with Reset
01

Livolo Single Mechanical Switch Module with Reset

A versatile product range: simple design, outstanding mechanism. This Livolo mechanical switch module with reset occupies 2 modules.

  • Single mechanical switch module with reset
  • Brand: Livolo
  • Size: 2 modules
Livolo Mechanical 1 Gang Push Button Switch Module with Reset (Momentary), 2 Modules – New Series – Important: Frame Not Included
02

Important: Frame Not Included

The images are for presentation purposes only. The price does NOT include the Livolo glass frame, which must be purchased separately.

  • Glass frame: not included
  • Metal frame: not included
Livolo Mechanical 1 Gang Push Button Switch Module with Reset (Momentary), 2 Modules – New Series – Fade-Resistant Finish
03

Fade-Resistant Finish

Does not discolour, so the elegant design stays intact.

Livolo Mechanical 1 Gang Push Button Switch Module with Reset (Momentary), 2 Modules – New Series – Structure
04

Structure

The complete assembly consists of a glass frame, the switch module and a metal mounting frame. Only the switch module is supplied.

  • Glass frame (not included)
  • Switch module
  • Metal frame (not included)
  • Screw fixing system: 60 mm
Livolo Mechanical 1 Gang Push Button Switch Module with Reset (Momentary), 2 Modules – New Series – Dimensions
05

Dimensions

  • Width: 45 mm
  • Height: 45 mm
  • Depth: 35 mm
  • Rating marked on module: 10AX 250V~
Livolo Mechanical 1 Gang Push Button Switch Module with Reset (Momentary), 2 Modules – New Series – Wiring Diagram
06

Wiring Diagram

Connect the live (phase) wire to terminal L on the module and run the switched output to the light. The neutral wire connects directly to the light.

  • Live (phase): to terminal L
  • Switched output: to the light
  • Neutral: directly to the light
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.
