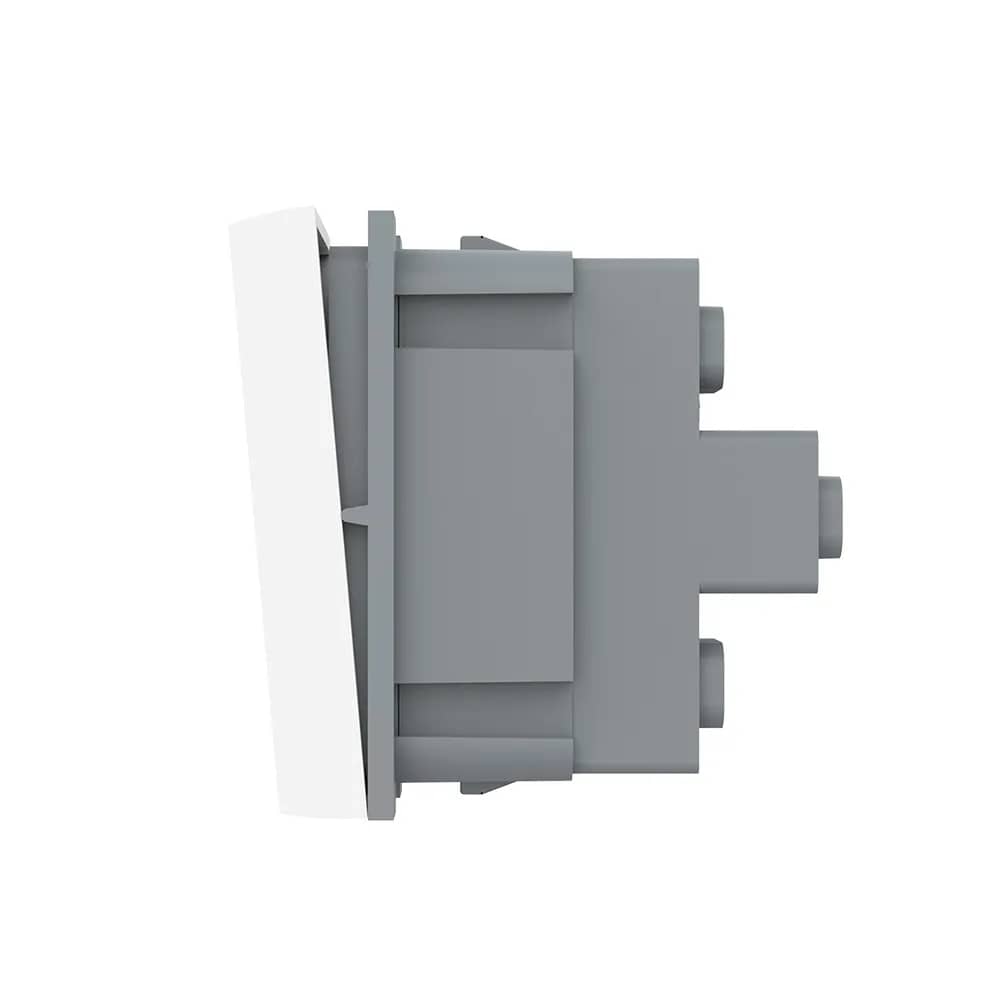

Livolo Mechanical Single Switch Module with Reset
A versatile product range with a simple design and an outstanding mechanism.
Livolo
Livolo Mechanical 1 Gang Light Switch Module with Reset – New Series
SKU: C7-VL-FCMH-1WP
AED 14
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 1 gang mechanical switch module with reset, compatible with glass frames for German standard or Italian modular back boxes.
Product details
Livolo mechanical 1 gang light switch module with reset. The product is compatible with glass frames for German standard back boxes or Italian modular back boxes.
Highlights
02
Important: Glass Frame Not Included
Images are for presentation purposes only. The price does NOT include the Livolo glass frame, which must be purchased separately.
03
Fade-Resistant Design
Does not discolour, so the elegant design stays intact.
04
Structure
The complete switch consists of three parts; only the mechanical module is included.
- Glass frame (not included)
- Mechanical module
- Metal frame (not included)
05
Dimensions
- Module front: 22.5 mm x 45 mm
- Module depth: 43 mm
- Screw fixing distance (vertical frame): 85 mm
- Screw fixing distance (square frame): 60 mm
06
Wiring Diagram
Connect the live wire to the switch terminal and run the switched output to the light; the neutral goes directly to the light. The module can be fitted in either a vertical or a square frame.
- Live (L): to the switch
- Neutral (N): to the light
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the glass frame – it clicks into place.
