01
Fade-Resistant Finish
The switch does not discolour, so its elegant design stays intact.
Livolo

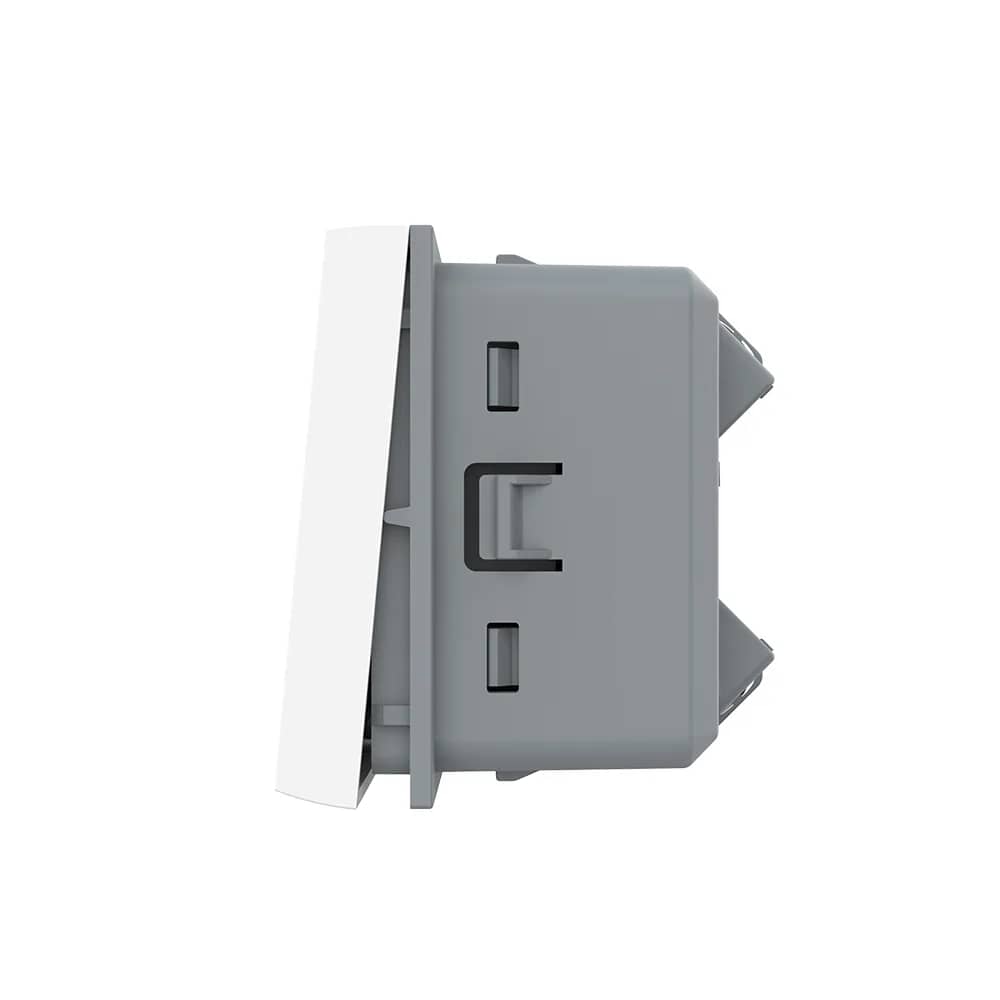

Livolo Mechanical 1 Gang Intermediate (Cross) Switch Module, 2 Modules – New Series
SKU: C7-VL-FCMM10A-2WP
AED 18
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo mechanical 1 gang intermediate (cross) switch module, 2 modules wide, for glass frames on German or Italian modular back boxes.
Product details
Mechanical 1 gang intermediate (cross) switch module, 2 modules. The product is compatible with glass frames for standard German back boxes or Italian modular back boxes.
Highlights
02
Wiring Diagram: Two-Way and Intermediate Switches
The intermediate (cross) switch is wired between two two-way switches, letting you control one light from three locations.
- Neutral goes directly to the light
- Live connects to the first two-way switch
- The first two-way switch is wired to the intermediate switch
- The intermediate switch is wired to the second two-way switch, which feeds the light
03

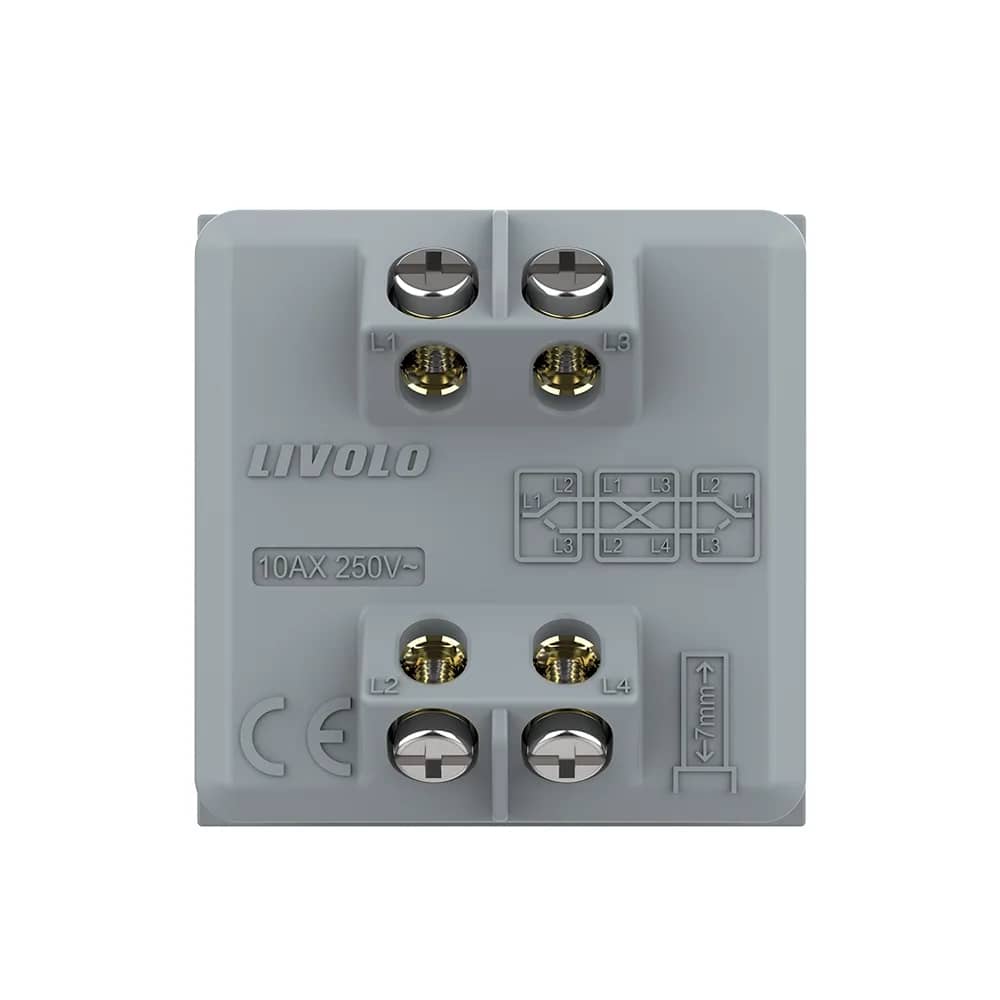

Structure
The product is the switch module only. The glass frame and the metal frame are not included.
- Glass frame (not included)
- Switch module
- Metal frame (not included)
- Screw fixing system with 60 mm spacing
04
Dimensions
- Front: 45 mm x 45 mm
- Depth: 26 mm
- Screw fixing spacing: 60 mm
05
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Click the front panel into place.
