Livolo

Livolo Glass Frame Schuko Socket with TV Socket – Single

SKU: VL-C9C1EU1V-11

AED 53

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo single Schuko wall socket with TV socket in a tempered glass frame, Italian-style design, fits 3-module boxes with 85 mm screw spacing.

Plug type: this socket is the European Schuko type (CEE 7/3). Most UAE homes use BS 1363 (Type G) sockets — please check that it suits your installation and appliances, or ask us before ordering.

Product details

Livolo single socket with TV socket and glass frame, an Italian-style design for homes, offices, commercial spaces and hotels. Modern, high-quality products. The product is compatible with 3-module modular wall boxes with 85 mm spacing between the screws.

Highlights

Livolo Glass Frame Schuko Socket with TV Socket – Single – The New Livolo Socket – C9 Series
01

The New Livolo Socket – C9 Series

A single glass-panel unit combining a Schuko power socket with a TV socket, from the new version of Livolo sockets in the C9 Series.

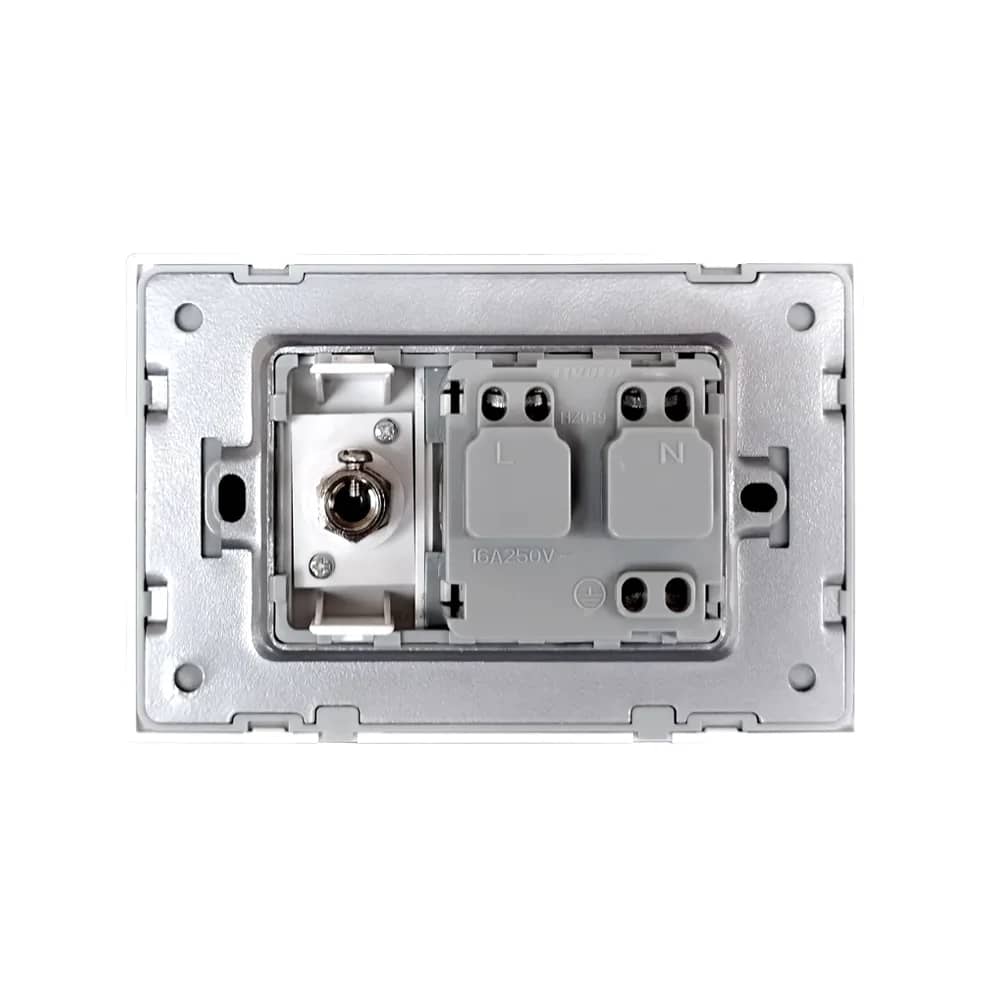

Livolo Glass Frame Schuko Socket with TV Socket – Single – Exceptional Quality
02

Exceptional Quality

Both the appearance and the quality of the materials are flawlessly executed.

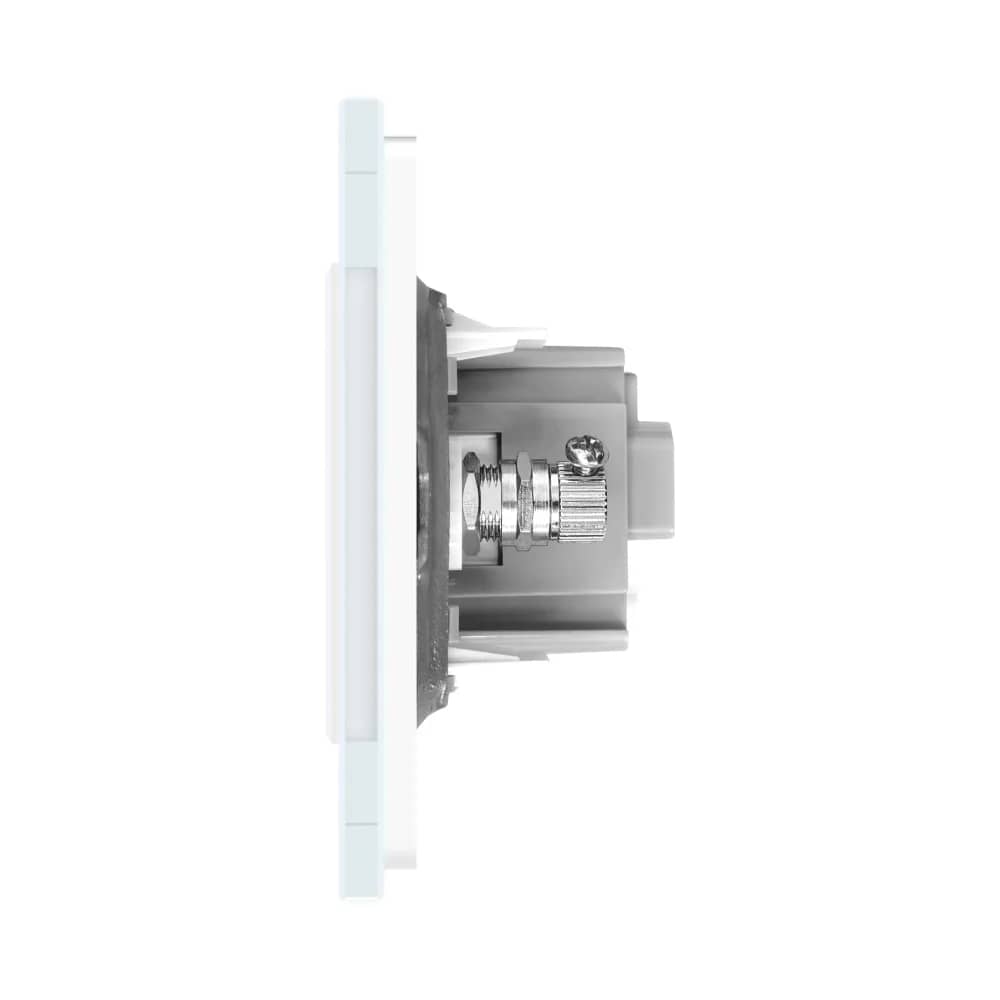

Livolo Glass Frame Schuko Socket with TV Socket – Single – Design and Materials
03

Design and Materials

The finely polished glass has a glossy, translucent texture that reflects light from its surface.

  • Does not discolour – always looks as new as on the first day
  • Durable glass, hard enough to stand the test of time
  • Finely polished glass with a glossy, translucent finish
Livolo Glass Frame Schuko Socket with TV Socket – Single – Structure
04

Structure

  • Elegant crystal glass panel
  • Integrated safety-protected module
  • Plastic and metal mounting frame
Livolo Glass Frame Schuko Socket with TV Socket – Single – Technical Data
05

Technical Data

  • Front panel dimensions: 119 mm x 78 mm
  • Panel thickness: 8 mm
  • Depth behind panel: 42 mm
  • Frame thickness: 4 mm
  • Screw fixing centres: 85 mm
  • Rating marked on module: 16A 250V
  • Fixing: screw mounting system
  • Support: polycarbonate
  • Terminals: Live (L), Neutral (N), Earth, TV terminal
Livolo Glass Frame Schuko Socket with TV Socket – Single – Wiring Diagram
06

Wiring Diagram

Connect the cables to the corresponding terminals on the back of the socket.

  • Live – terminal L
  • Neutral – terminal N
  • Earth – earth terminal
  • TV cable – TV terminal
07

Installation

  • 1. Open the package.
  • 2. Connect the cables and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.
