Livolo

Livolo Double Wall Socket with Glass Frame – Narrow Modules, German Standard

SKU: VL-C9-C2IT-11

AED 42

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo double wall socket with narrow German-standard modules and a scratch-resistant glass frame, available in five colours.

Product details

Double wall socket with a glass frame that is resistant to scratches. It installs easily using the screws supplied in the product box.

Highlights

Livolo Double Wall Socket with Glass Frame – Narrow Modules, German Standard – Outstanding Quality
01

Outstanding Quality

Simple design with an exceptional mechanism, with careful attention paid to every detail.

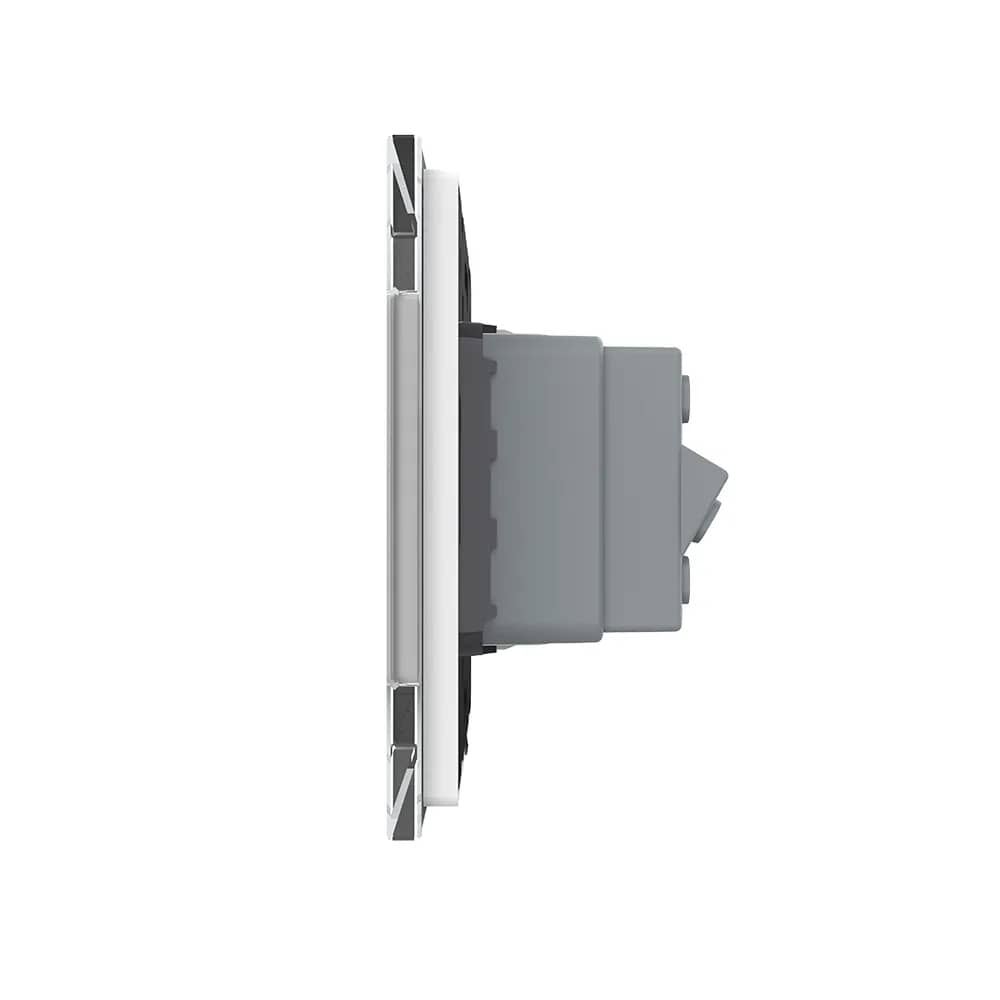

Livolo Double Wall Socket with Glass Frame – Narrow Modules, German Standard – Ultra-Resistant Glass
02

Ultra-Resistant Glass

The glass panel protects the product from scratches caused by knives or other hard metals, so it always keeps its distinctive, like-new appearance.

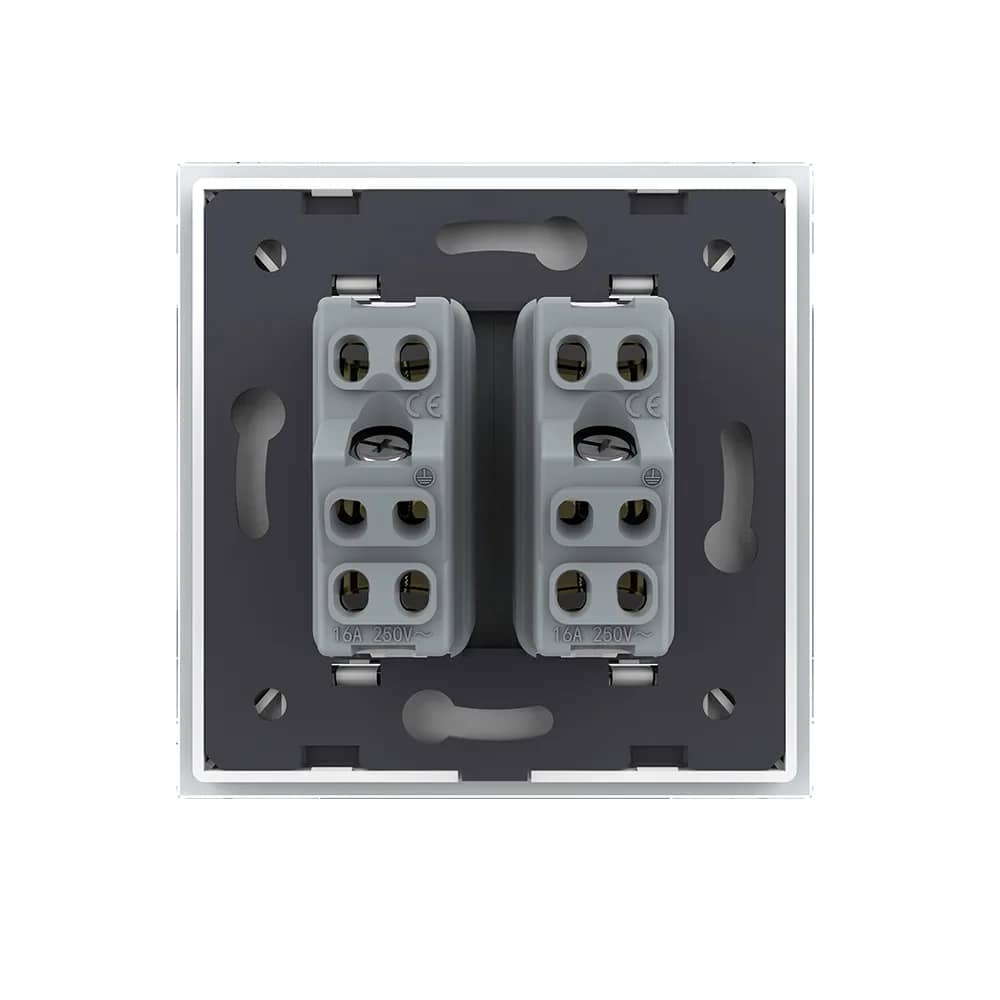

Livolo Double Wall Socket with Glass Frame – Narrow Modules, German Standard – Structure
03

Structure

Simple design, easy mechanism.

  • Elegant crystal panel
  • Integrated safety module
  • Metal frame
Livolo Double Wall Socket with Glass Frame – Narrow Modules, German Standard – Design and Materials
04

Design and Materials

  • Crystal glass panel
  • Polycarbonate support
  • Screw fixing system
  • Terminals: Neutral (N), Earth, Live (L)
Livolo Double Wall Socket with Glass Frame – Narrow Modules, German Standard – Technical Data
05

Technical Data

  • Brand: LIVOLO
  • Product name: Livolo Italian double socket with glass frame
  • Model: VL-C9-C2IT
  • Product type: Type 80
  • Available colours: White; Black; Grey; Gold
  • Net weight: ≈220g
  • Material: Toughened glass and polycarbonate support
  • Dimensions: 80mm x 80mm
  • Panel thickness: 4mm
  • Depth behind panel: 34mm
  • Fixing hole spacing: 60mm
  • Rating marked on terminals: 16A 250V~
Livolo Double Wall Socket with Glass Frame – Narrow Modules, German Standard – Installation
06

Installation

Wiring diagram: connect the Neutral (N), Live (L) and Earth wires to the corresponding terminals; both sockets are linked in parallel.

  • 1. Open the package
  • 2. Connect the wires and tighten the screws
  • 3. Use the two screws to fix the frame
  • 4. Fit the panel (it clicks into place)
