Livolo

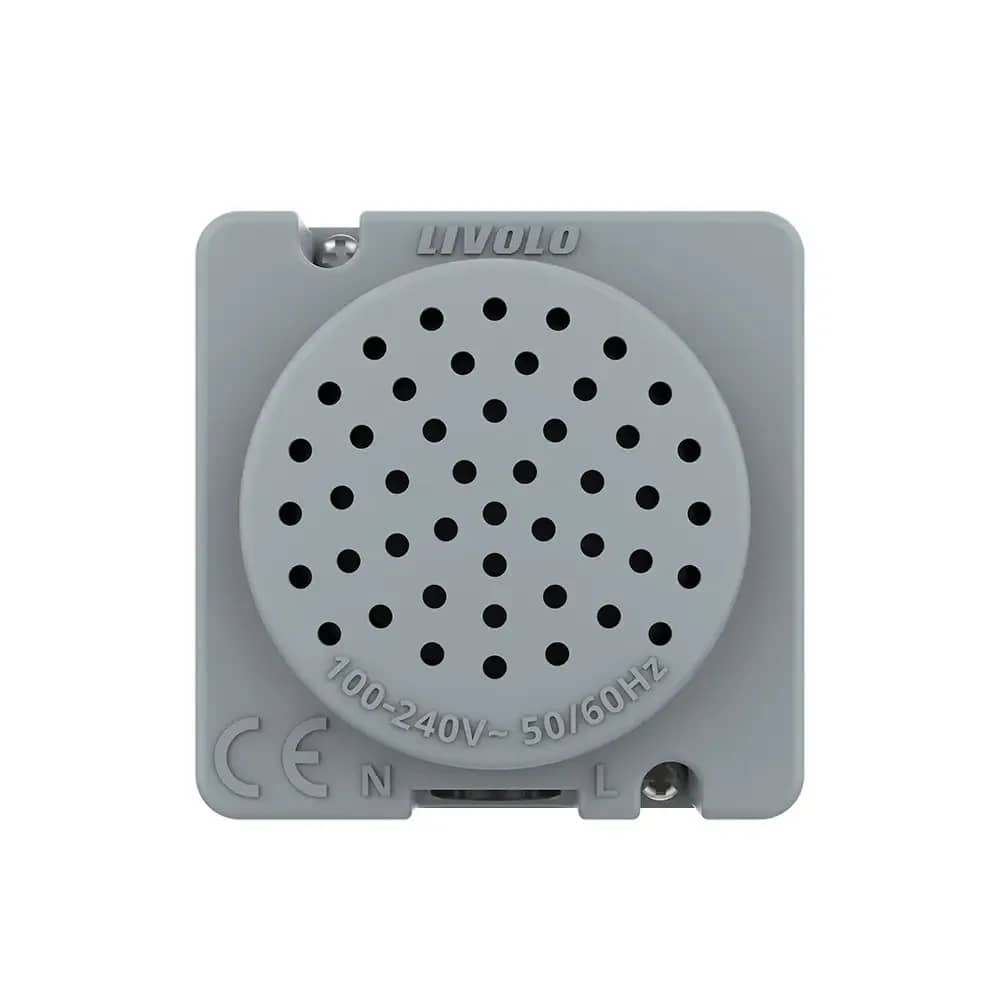

Livolo Bluetooth Speaker Module

SKU: C7-VL-FCF-2WP

AED 191

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo Bluetooth speaker module for Livolo glass frames, combinable with Livolo switches and sockets, in White, Gold, Grey or Black.

Product details

Livolo Bluetooth speaker module, compatible with Livolo glass frames. It can be combined in many ways with Livolo light switches and sockets. Installs in a standard 2-module wall box with screw fixing (60 mm between screws).

Highlights

Livolo Bluetooth Speaker Module – Livolo Bluetooth Speaker Module
01

Livolo Bluetooth Speaker Module

Simple design, outstanding mechanism. A wall-mounted Bluetooth speaker module from the Livolo range, available to match a variety of glass frame colours.

  • Pairs with your smartphone via Bluetooth
  • Fits the Livolo glass frame system
Livolo Bluetooth Speaker Module – Important: Frame Not Included
02

Important: Frame Not Included

The images are for presentation only. The price does not include the Livolo glass frame or the metal frame; these must be purchased separately.

Livolo Bluetooth Speaker Module – Controls
03

Controls

  • Bluetooth touch button for pairing
  • Volume - button
  • Volume + button
Livolo Bluetooth Speaker Module – Glass Panel Design
04

Glass Panel Design

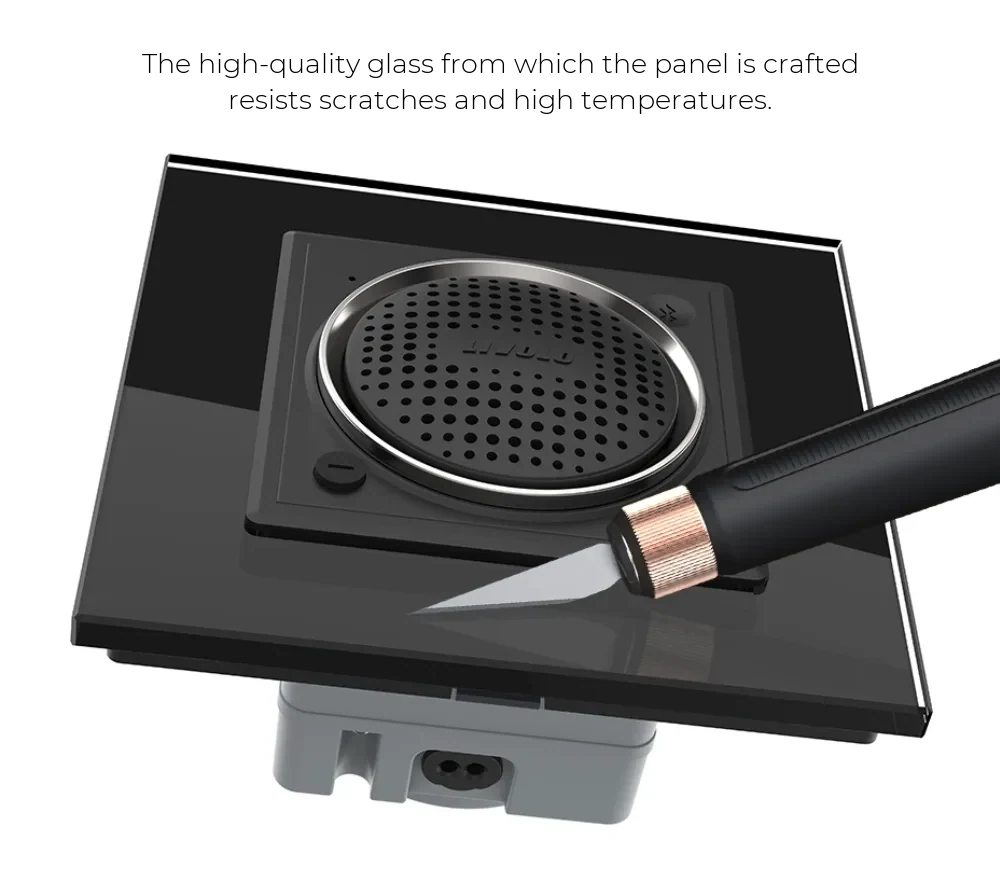

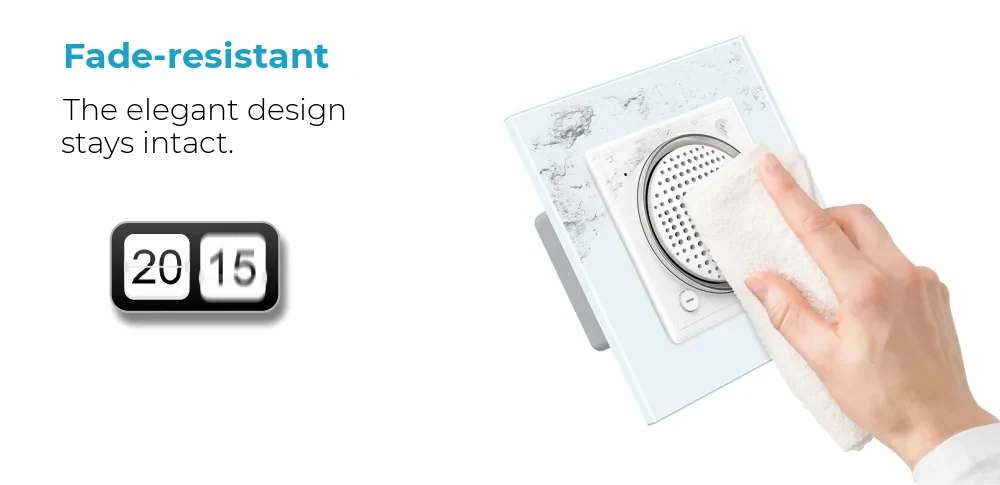

The high-quality glass used for the panel resists scratches and high temperatures. It does not fade, so the elegant design stays intact over time.

  • Scratch-resistant
  • Resistant to high temperatures
  • Does not discolour
Livolo Bluetooth Speaker Module – Structure
05

Structure

The complete assembly consists of three parts.

  • Glass frame (not included)
  • Bluetooth speaker module
  • Metal frame (not included)
  • Screw fixing system with 60 mm spacing
Livolo Bluetooth Speaker Module – Dimensions
06

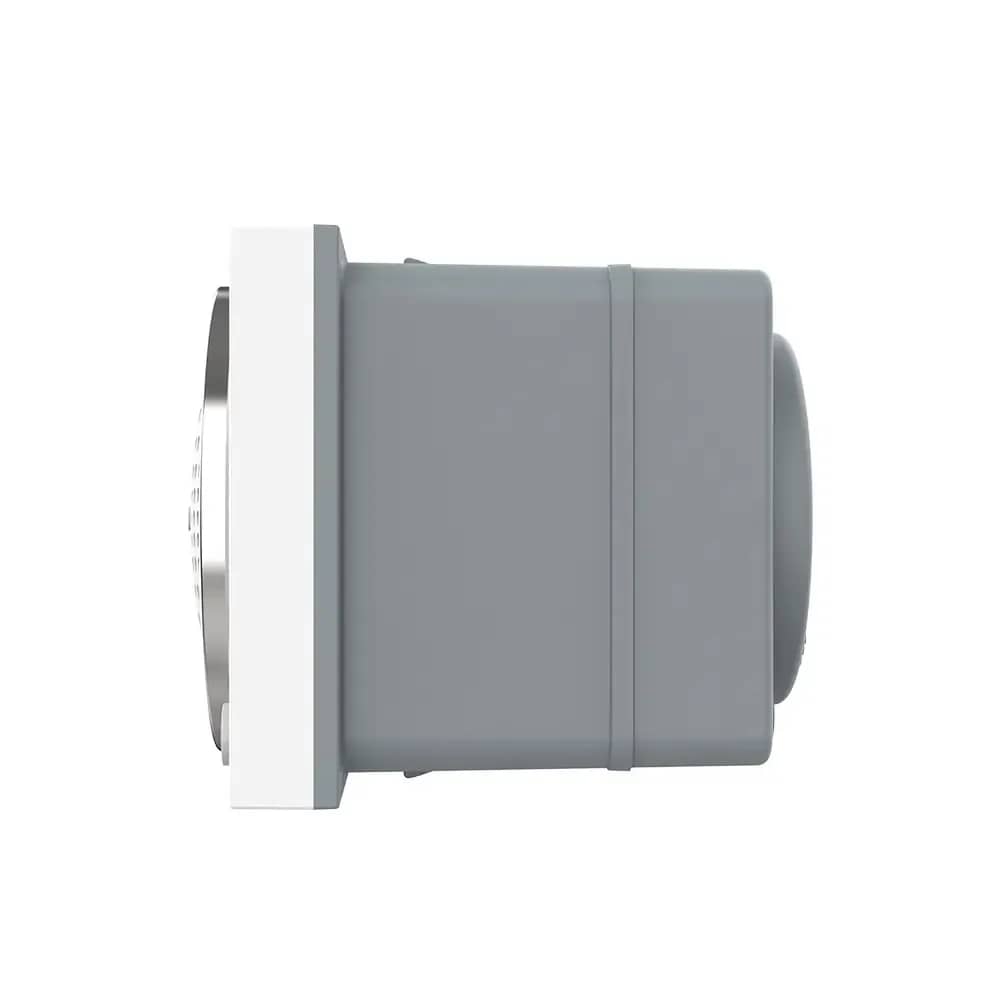

Dimensions

  • Front size: 80 mm x 80 mm
  • Glass thickness: 4 mm
  • Depth: 38 mm
  • Mounting frame: 8 mm
  • Screw fixing spacing: 60 mm
07

Installation – Wiring Diagram

The module connects with two wires.

  • Neutral (N) – blue wire
  • Live (L) – red wire

In detail

Livolo Bluetooth Speaker Module – detail 1Livolo Bluetooth Speaker Module – detail 2

The Livolo Bluetooth speaker in action

Official Livolo video
