01
Touch Sensor
The touch sensor is extremely precise, identical to the sensor in a smartphone.
- Glass panel not included – must be purchased separately
Livolo

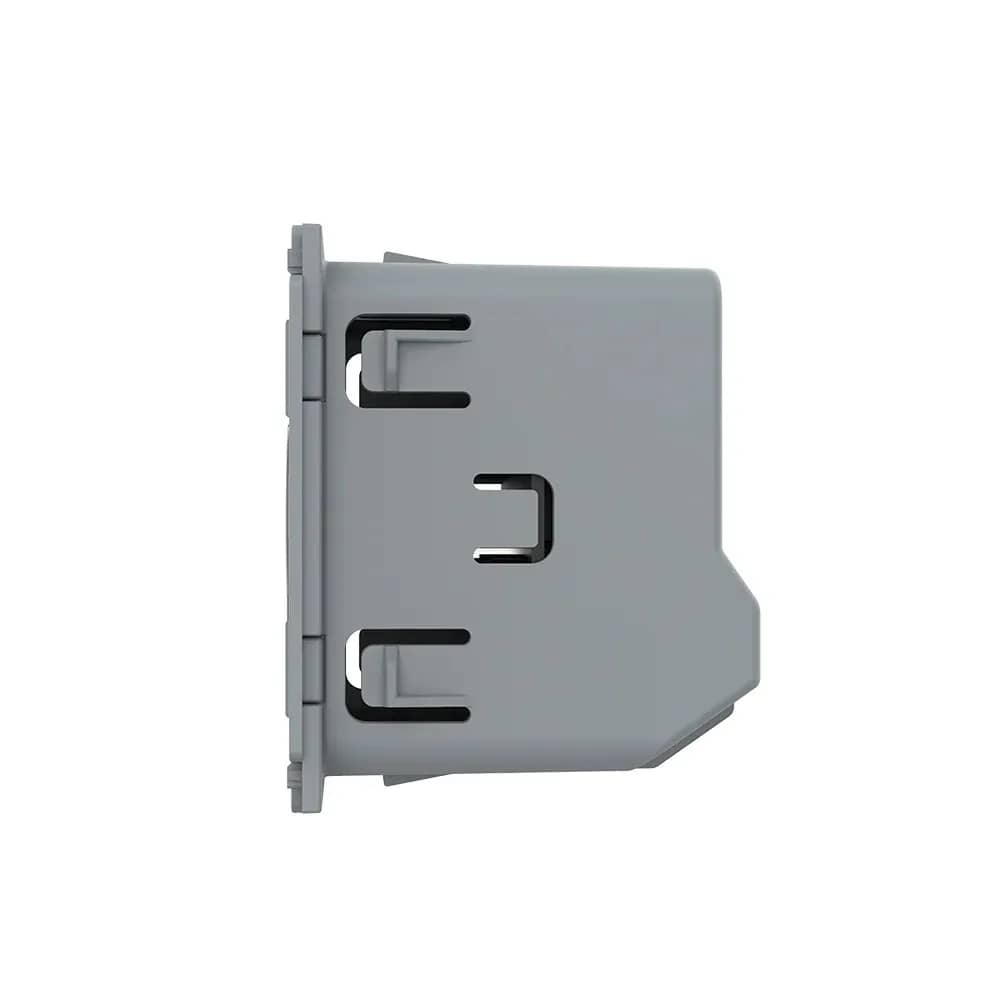

Livolo 2 Gang Momentary Touch Switch Module – Dry Contact, 12/24V – New Series (C7-VL-FC2HC-2G)
SKU: C7-VL-FC2HC-2G
AED 134
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 2 gang momentary (reset) touch switch module with dry contact for 12/24V systems, featuring blue/red LED indicators.
Product details
2 gang momentary switch module / reset button, 12/24V with on/off touch control – with a blue LED when the switch is off and a red LED when the switch is on, making it easy to use in the dark. Resistant to scratches and moisture, it will always look impeccable. Suitable for homes, offices, restaurants, conference rooms and luxury hotels.
Highlights
02
Fade-Resistant Design
Does not discolour – the elegant design stays intact.
03
Wiring Diagram
Terminals on the module: IN, OUT2, OUT1, + and -.
- +: Positive pole of the DC power supply
- -: Negative pole of the DC power supply
- IN: Input wire
- OUT1/OUT2: Output wires
04
Technical Data
- Voltage: 12/24V DC
- Load: 5A/gang, 10A total
- Wire strip length: 6mm
- Marking: CE
05
Installation
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
In detail
