Livolo 2 Gang Momentary (Reset) Touch Switch Module – New Series VL-FC2B-2G

Double Doorbell Touch Switch Module (Momentary)

A Livolo double touch doorbell button module with momentary (reset) action. Simple design, outstanding mechanism. The doorbell only operates while the button is being touched.

• 2 gang momentary (reset) touch module
• Doorbell sounds only while the button is touched
• Available to pair with panels in a variety of colours
• Important: the Livolo glass panel is NOT included and must be purchased separately

Improved New Series

Unmatched performance with low energy consumption. The new series is an improved version of the previous model.

• Panel thickness: 4 mm

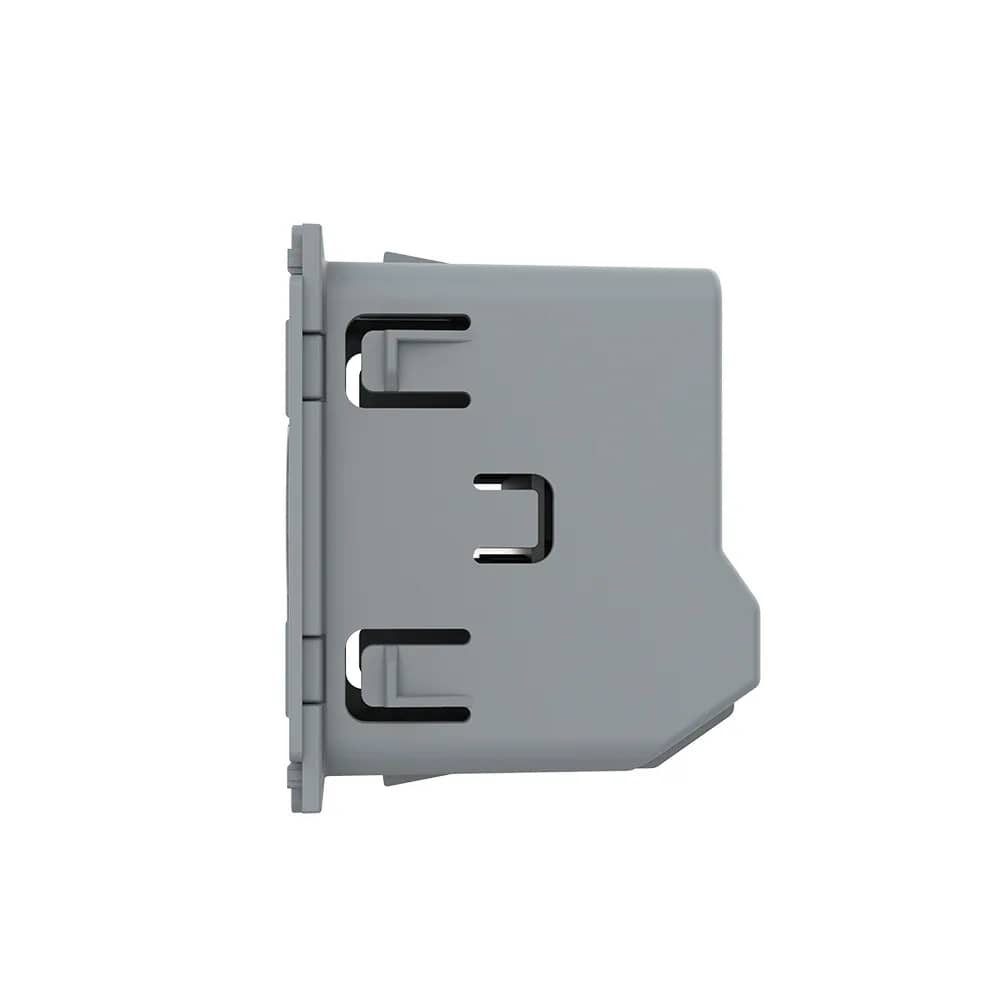

• Module depth: 33 mm
• 8 mm

Fade-Resistant Design

The panel does not fade, so its elegant design stays intact.

Structure

The switch consists of an elegant crystal panel, the switch module and a metal frame. Only the switch module is included.

• Elegant crystal panel (not included)
• Switch module (included)
• Metal frame (not included)
• Screw fixing system: 60 mm spacing

Technical Data

• Voltage: 100-240V~ 50/60Hz
• Load: 5A/gang, 10A total
• Panel dimensions: 80 mm x 80 mm
• Panel thickness: 4 mm
• Module depth: 33 mm
• Screw fixing spacing: 60 mm

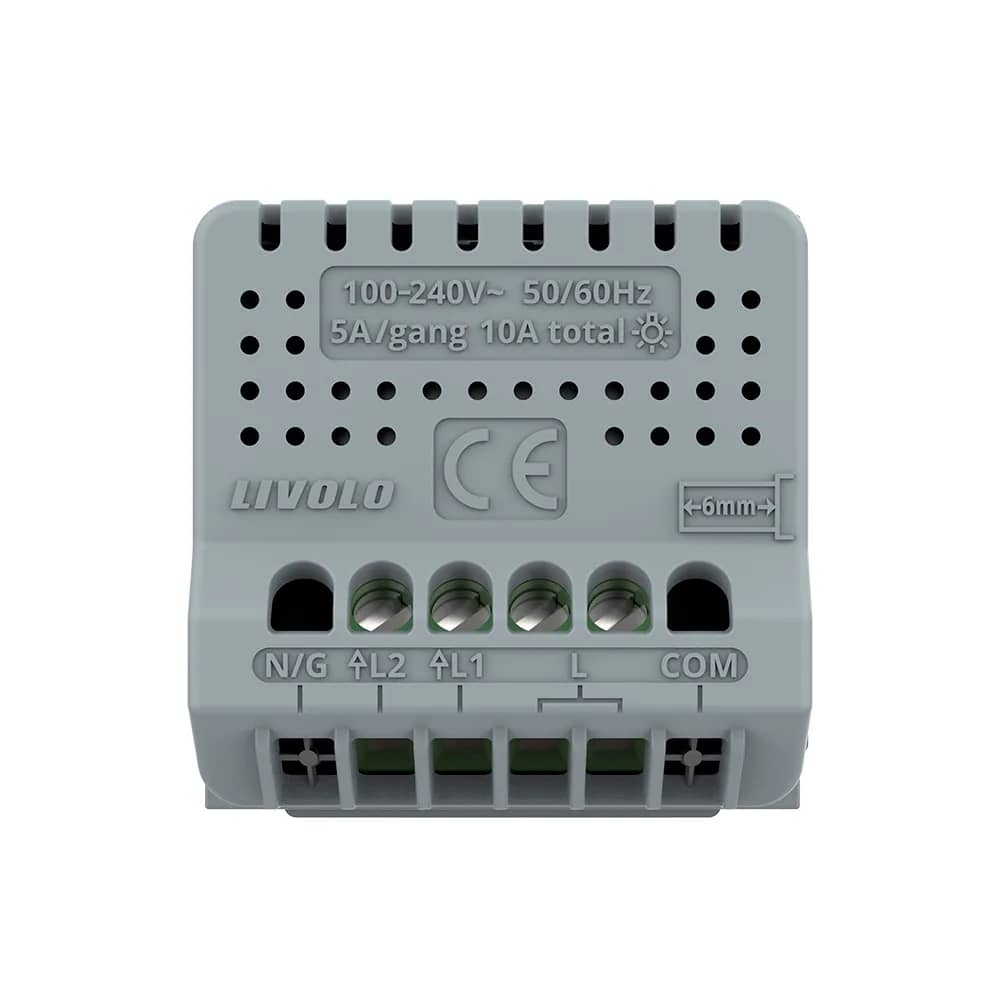

• Terminals: N/G, L2, L1, L, COM

Wiring

Connect live (L) to the L terminal and the outputs L1 and L2 to the doorbells or loads, with neutral (N) completing the circuit. When used to control lights, a step-by-step (impulse) relay is required.

• Live (L) to terminal L
• Outputs to L1 and L2
• Neutral (N) to the doorbells/loads
• For lighting: requires a step-by-step relay (not included in the package)
