Livolo 1 Gang Touch Light Switch Module 1M – Italian Standard, New Series

Livolo 1M Single Touch Switch Module – Italian Standard

A wide range of products with a simple design and an exceptional mechanism. This single 1M touch switch module follows the Livolo Italian standard and is available to match panels in several colours.

• Important: the glass panel is shown for presentation only and is NOT included – it must be purchased separately

Touch Sensor

The touch sensor is extremely precise, just like the sensor on a smartphone.

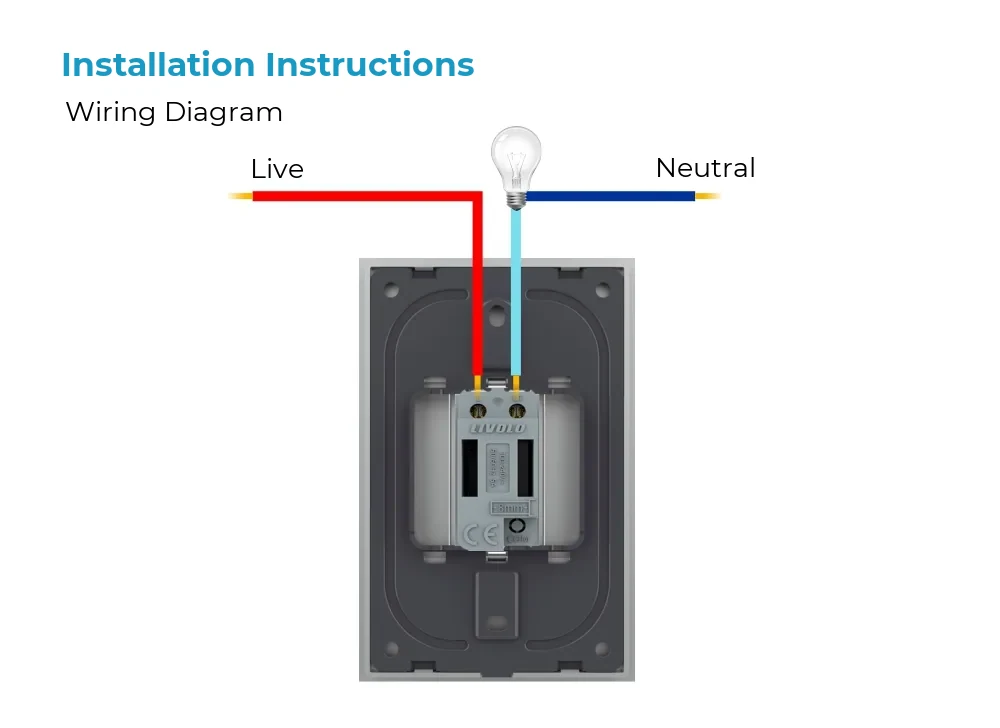

Wiring Diagram

Connect the live (phase) wire and the wire leading to the light as shown in the wiring diagram; the light is connected to neutral.

• Live (phase) wire to the switch module
• Switch module output to the light
• Light connected to neutral

Structure

The complete switch consists of a glass panel, the switch module and a metal frame, secured with a screw fixing system.

• Elegant crystal glass panel (not included)
• Switch module (included)
• Metal frame (not included)
• Screw fixing system with 85 mm spacing

Installation Steps

• 1. Open the package.
• 2. Connect the wires and tighten the screws.
• 3. Use the 2 screws to fix the frame.
• 4. Fit the front panel – it clicks into place.

Quality and Durability

• Tempered glass panels with surface hardness greater than 4H, keeping the switch clean and scratch-resistant over the long term
• Galvanised parts show no corrosion after high-temperature and saturated salt spray testing
• Surface and functionality remain as new after testing in extreme high, low and constant temperature and humidity conditions
• Endurance tests indicate an average service life of over 100,000 operations
• High-voltage resistance tested
