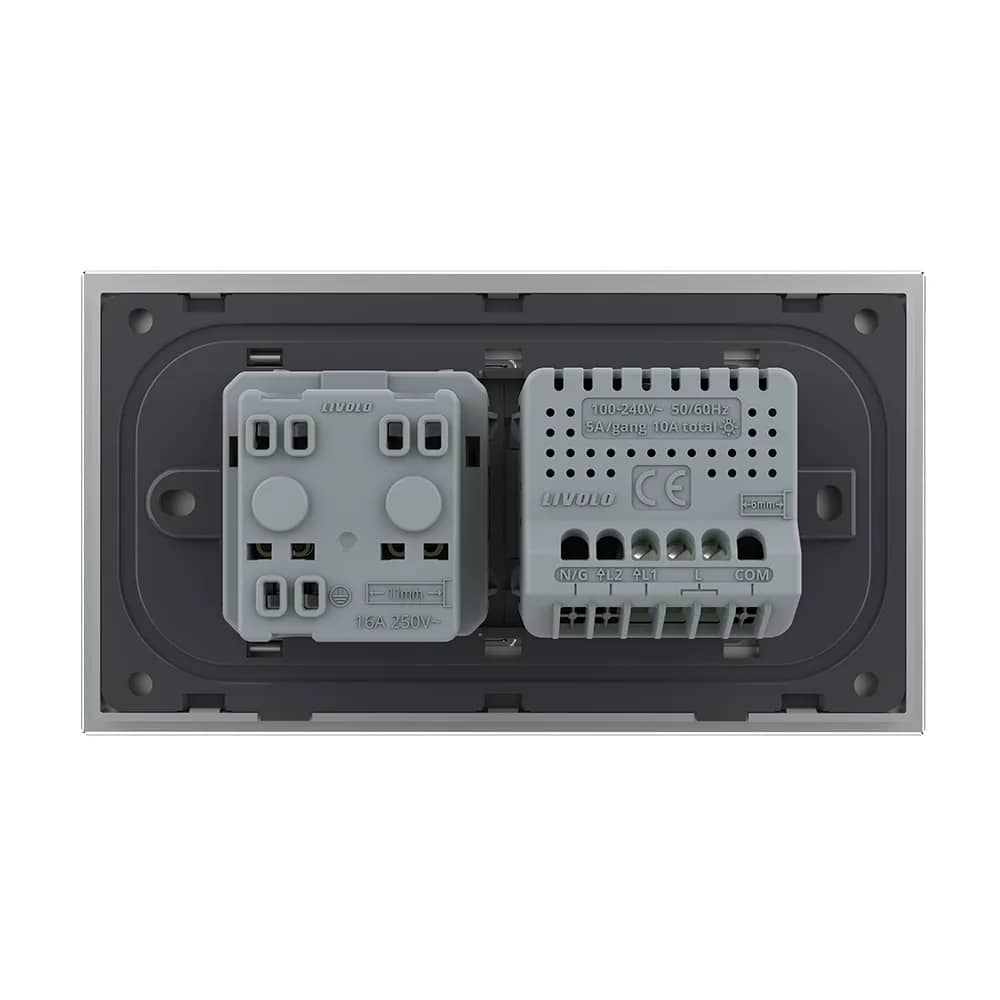

Livolo Glass Touch Light Switch + Socket – 1 Gang, Italian Standard, 4 Module – White — image 4
1/4
Livolo

Livolo Glass Touch Light Switch + Socket – 1 Gang, Italian Standard, 4 Module

SKU: VL-FC1/FCTC-4W

AED 116

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang light switch and socket with a tempered crystal glass frame, Italian standard, 4 modules, in White, Gold, Grey or Black.

Product details

Livolo 1 gang light switch + socket in glass, Italian standard, with 4 modules, made from tempered, heat-resistant crystal glass, compatible only with Livolo modules. It is resistant to scratches, moisture and dust, and brings extra elegance and refinement to your home. Compatible with a 4-module modular back box with 108 mm screw spacing.

Highlights

Livolo Glass Touch Light Switch + Socket – 1 Gang, Italian Standard, 4 Module – Livolo Single Touch Switch + Single Socket
01

Livolo Single Touch Switch + Single Socket

A single touch light switch combined with a single socket, built to the Italian standard. Simple design, outstanding mechanism, available in a variety of finishes.

  • 1-gang touch light switch plus socket
  • Italian standard
  • Available in several colours

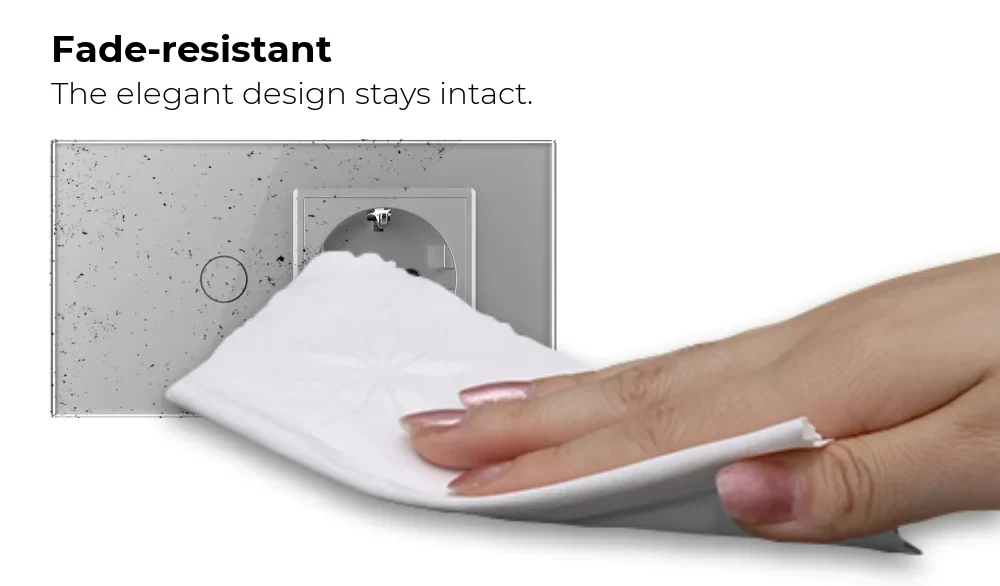

Livolo Glass Touch Light Switch + Socket – 1 Gang, Italian Standard, 4 Module – Fade-Resistant Finish
02

Fade-Resistant Finish

The panel does not discolour, so its elegant design stays intact.

Livolo Glass Touch Light Switch + Socket – 1 Gang, Italian Standard, 4 Module – Structure
03

Structure

The unit is made up of three main parts.

  • Elegant crystal glass panel
  • Switch + socket modules
  • Metal frame
  • Screw fixing system with 108 mm between fixing points
Livolo Glass Touch Light Switch + Socket – 1 Gang, Italian Standard, 4 Module – Dimensions
04

Dimensions

  • Width: 143 mm
  • Height: 78 mm
  • Panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame depth: 8 mm
Livolo Glass Touch Light Switch + Socket – 1 Gang, Italian Standard, 4 Module – Wiring Diagram
05

Wiring Diagram

Connect the earth to the socket, the live (L) and neutral (N) to the socket and switch, and the light to the switch's L1 output.

  • Earth: socket earth terminal
  • Live (L): socket and switch L terminal
  • Neutral (N): socket and lamp
  • Switch L1 output: to the lamp
Livolo Glass Touch Light Switch + Socket – 1 Gang, Italian Standard, 4 Module – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the cables and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel until it clicks into place.

In detail

Livolo Glass Touch Light Switch + Socket – 1 Gang, Italian Standard, 4 Module – detail 1
