Livolo

Livolo Glass Touch 1 Gang 2-Way / Intermediate Light Switch + Socket – Italian Standard, 4M

SKU: VL-FC1S/FCTC-4W

AED 155

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang 2-way/intermediate light switch with socket in a tempered crystal glass frame, Italian standard 4-module, in four colours.

Product details

Livolo 1 gang 2-way (staircase) / intermediate light switch + socket in glass, Italian standard, with 4 modules, made of heat-resistant tempered crystal glass, compatible only with Livolo modules. It is resistant to scratches, moisture and dust, and adds a touch of elegance and refinement to your home. Compatible with a 4-module modular back box with 108 mm screw spacing.

Highlights

Livolo Glass Touch 1 Gang 2-Way / Intermediate Light Switch + Socket – Italian Standard, 4M – Overview
01

Overview

A LIVOLO touch light switch for 2-way (staircase) or intermediate (cross) operation, combined with a single socket, built to the Italian standard. Simple design, outstanding mechanism.

  • 1-gang touch switch, 2-way / intermediate
  • Single socket
  • Italian standard
  • Available in a range of panel colours
Livolo Glass Touch 1 Gang 2-Way / Intermediate Light Switch + Socket – Italian Standard, 4M – Fade-Resistant Finish
02

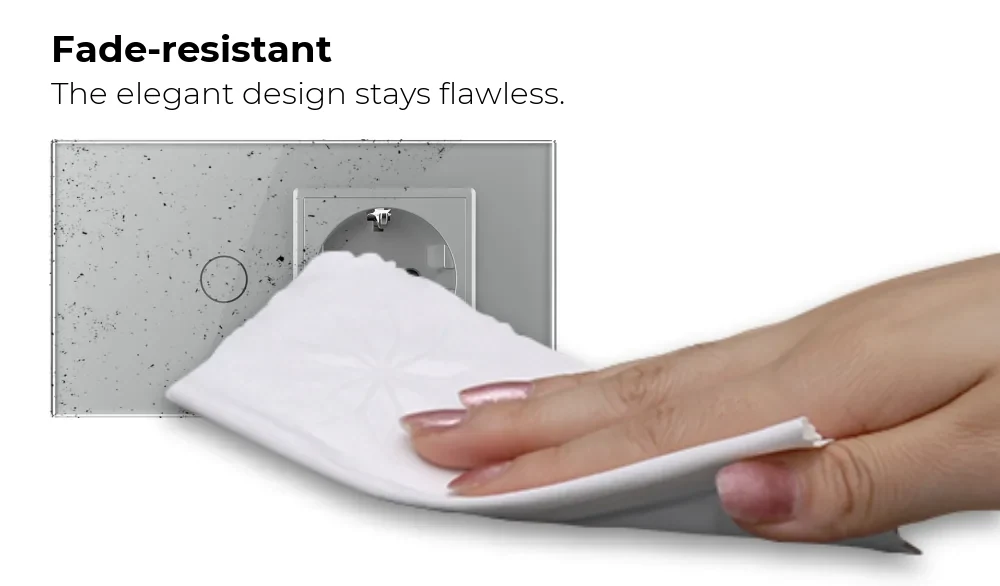

Fade-Resistant Finish

The panel does not discolour, so its elegant design stays intact.

Livolo Glass Touch 1 Gang 2-Way / Intermediate Light Switch + Socket – Italian Standard, 4M – Structure
03

Structure

  • Elegant crystal glass panel
  • Switch + socket modules
  • Metal frame
  • Screw fixing system, 108 mm between fixing points
Livolo Glass Touch 1 Gang 2-Way / Intermediate Light Switch + Socket – Italian Standard, 4M – Dimensions
04

Dimensions

  • Width: 143 mm
  • Height: 78 mm
  • Depth behind panel: 33 mm
  • Panel thickness: 4 mm / 8 mm
Livolo Glass Touch 1 Gang 2-Way / Intermediate Light Switch + Socket – Italian Standard, 4M – Wiring Diagram
05

Wiring Diagram

The socket connects to earth, live (L) and neutral (N). The switch module connects to live (L) and the light, with the COM terminal linked to a second switch for 2-way / intermediate control.

  • Earth
  • Live (L)
  • Neutral (N)
  • 2-way / intermediate link between switches
Livolo Glass Touch 1 Gang 2-Way / Intermediate Light Switch + Socket – Italian Standard, 4M – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel (it clicks into place).

In detail

Livolo Glass Touch 1 Gang 2-Way / Intermediate Light Switch + Socket – Italian Standard, 4M – detail 1
