New Livolo C9 Series
The new version of Livolo sockets from the C9 Series, combining a 2 gang light switch and a socket in one glass-framed unit.
Livolo
Livolo 2 Gang Light Switch + Socket with Glass Frame – Italian Standard
SKU: C9-782000211/1IT-81
AED 94
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 2 gang light switch and socket with glass frame, Italian standard, for 3-module boxes with 85 mm screw spacing. White or Black.
Product details
Livolo 2 gang light switch and socket with glass frame, Italian model for homes, offices, commercial spaces and hotels. Modern, high-quality products. The product is compatible with 3-module modular wall boxes with a screw spacing of 85 mm.
Highlights
02
Exceptional Quality
Both the appearance and the quality of the materials are impeccably crafted.
- Does not discolour – always looks as new as on the first day
- Durable glass, hard enough to stand the test of time
- Finely polished glass with a glossy, translucent texture that reflects light across its surface
03
Structure
- Elegant crystal panel
- Integrated safety panel
- Plastic and metal frame
04
Technical Data
- Width: 119 mm
- Height: 78 mm
- Glass panel thickness: 8 mm

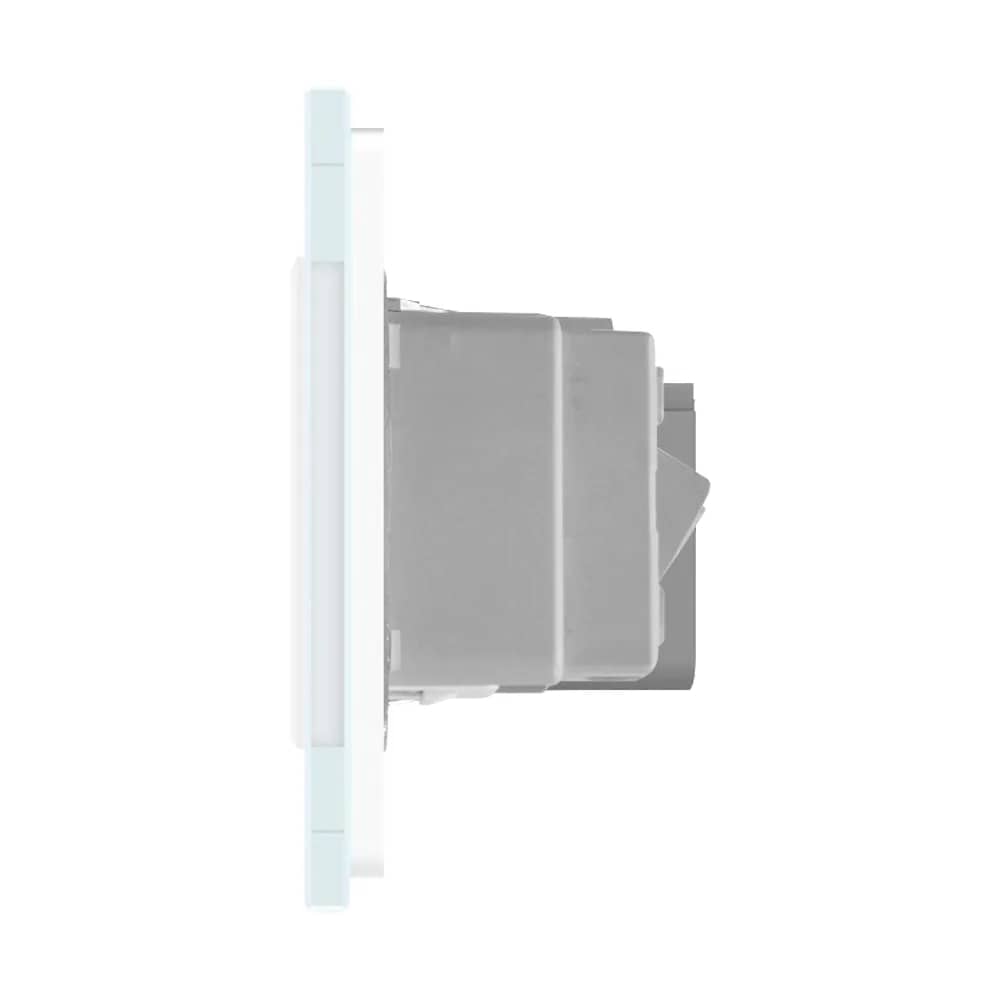

- Depth behind panel: 33 mm
- Frame: 4 mm
- Screw fixing distance: 85 mm
- Back housing material: polycarbonate
- Front: glass panel
- Fixing: screw mounting system
05
Wiring Diagram
The socket is connected to Neutral (N), Earth and Live (L). The switch is connected to Live (L), with outputs L1 and L2 each feeding one light, whose other wire goes to Neutral (N).
- Socket: Neutral (N), Earth, Live (L)
- Switch: Live (L) input, L1 and L2 light outputs
06
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
