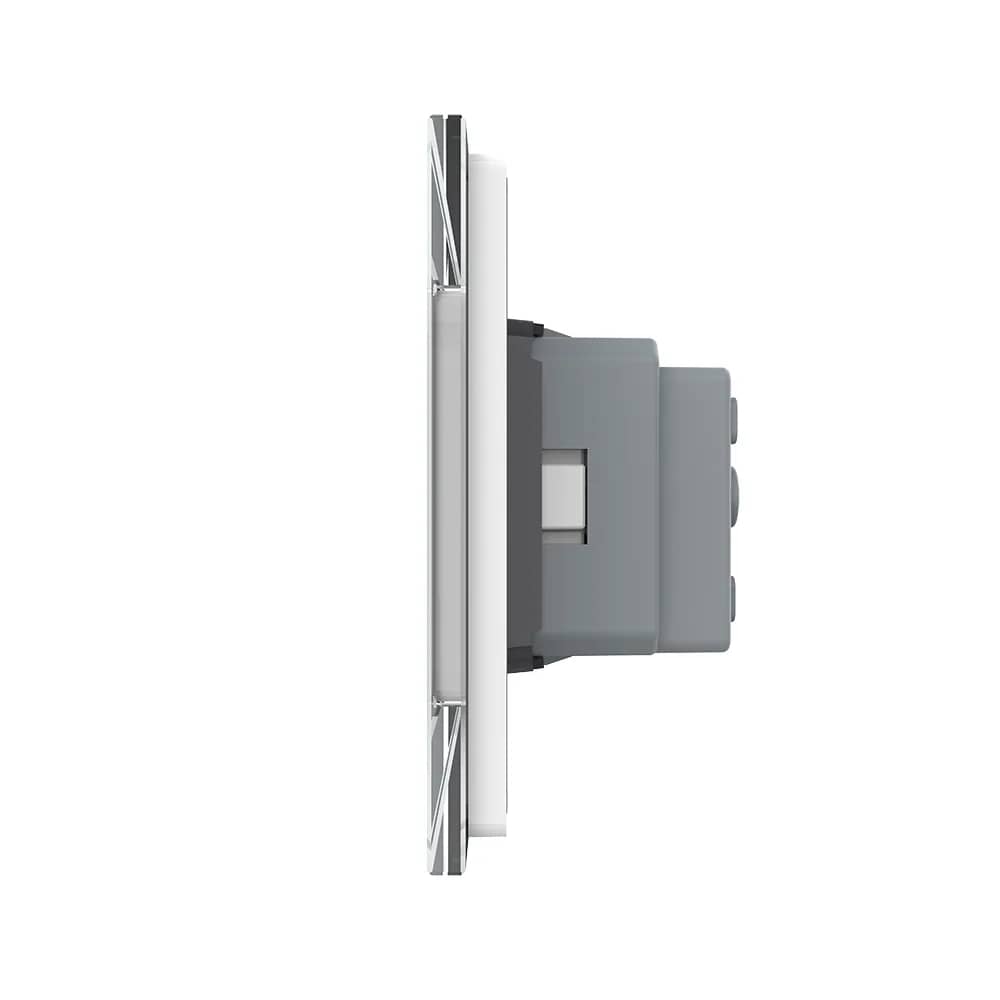

Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M – White — image 3

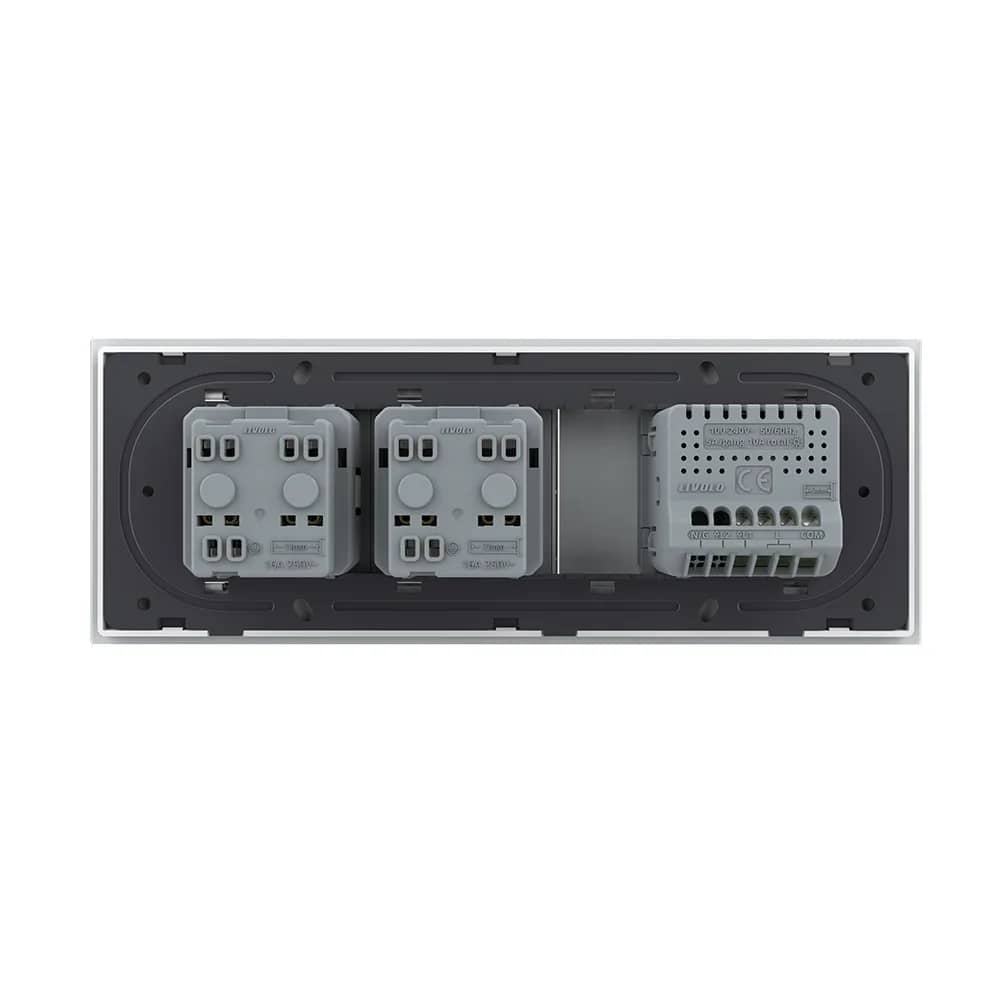

Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M – White — image 4
1/4
Livolo

Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M

SKU: VL-FC1S/2FCTC-6W

AED 202

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang 2-way/intermediate switch with two sockets in a tempered glass frame, Italian standard 6-module, for Livolo modules only.

Product details

Livolo 1 gang 2-way (staircase)/intermediate light switch + two sockets with a glass frame, Italian standard, compatible with a 6-module modular back box with 102 mm between the screws, compatible only with Livolo modules. It is resistant to scratches, moisture and dust, and adds a touch of elegance and refinement to your home.

Highlights

Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M – Livolo Touch Switch + 2 Sockets, Italian Standard
01

Livolo Touch Switch + 2 Sockets, Italian Standard

A single 2-way/intermediate touch light switch combined with two sockets in one LIVOLO glass panel, built to the Italian standard. Simple design, outstanding mechanism.

  • 1 gang 2-way / intermediate touch switch
  • 2 integrated sockets
  • Available in several panel colours
Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M – Fade-Resistant Finish
02

Fade-Resistant Finish

The panel does not discolour, so its elegant design stays intact.

Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M – Structure
03

Structure

The unit is made up of three main parts, fixed together with a screw mounting system.

  • Elegant crystal glass panel
  • Switch and socket modules
  • Metal frame
  • Screw fixing system with 102 mm spacing
Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M – Dimensions
04

Dimensions

  • Width: 210 mm
  • Height: 78 mm
  • Panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame: 8 mm
  • Screw fixing spacing: 102 mm
Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M – Wiring Diagram
05

Wiring Diagram

The sockets connect to earth, live (L) and neutral (N). The switch connects to live and the light, and links to a second 2-way/intermediate switch via the traveller wire.

  • Earth
  • Live (L)
  • Neutral (N)
  • 2-way/intermediate link between switches
Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the cables and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.

In detail

Livolo Glass 1 Gang 2-Way / Intermediate Touch Light Switch + 2 Sockets – Italian Standard, 6M – detail 1
